FixVault
Home
›
Honda
›
2007
›
Pilot EX, 3.5 YF2
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belts
›
Component Location Index
Component Location Index

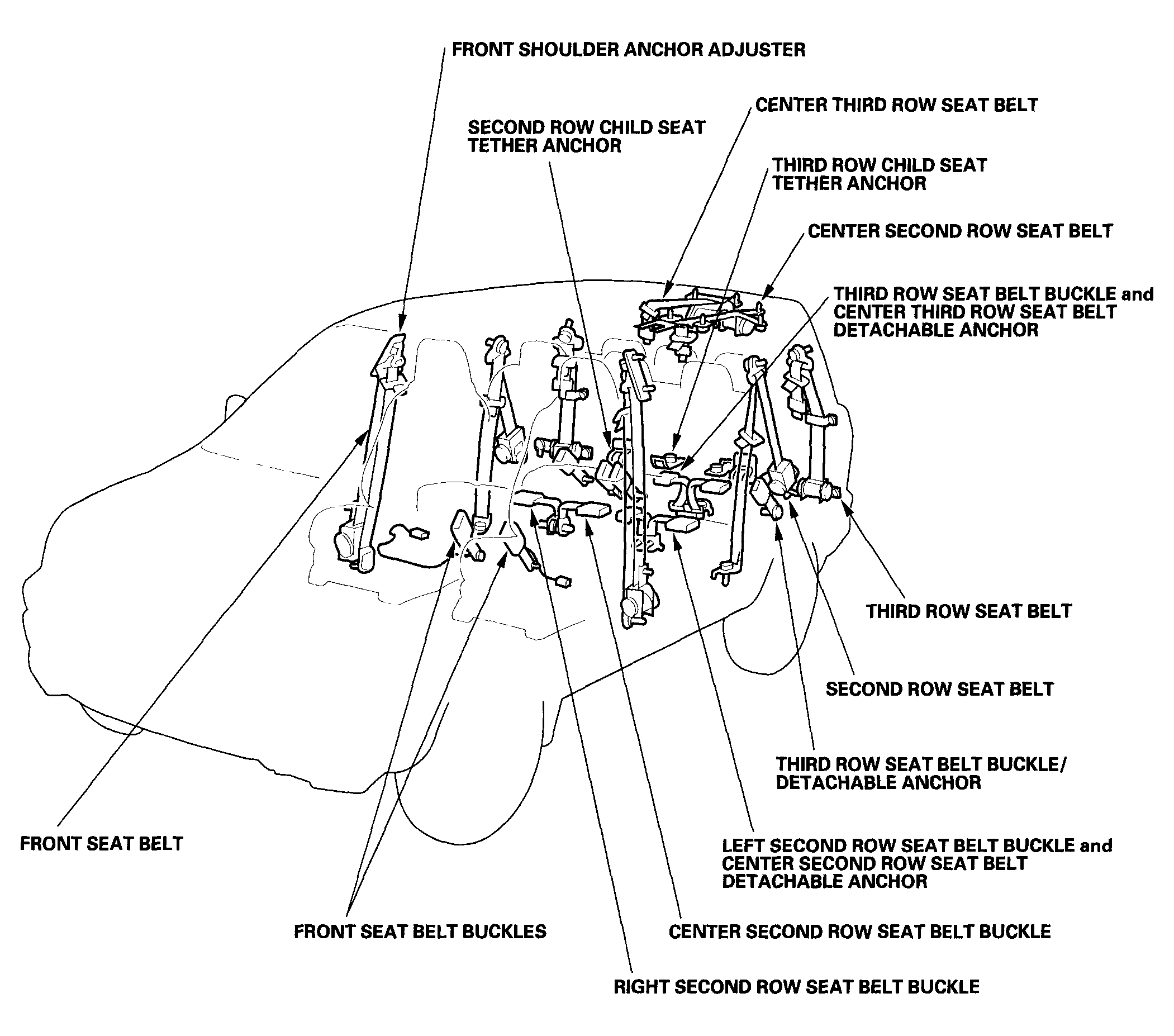

Fig 1: Identifying Location Of Seat Belt Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
