2007
›
Pilot LX, 3.5 YF2
›
Repair and Diagnosis (Single Page)
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
Brake Pedal Position Switch (Climate Control (DPMS)) Connector End View
Brake Pedal Position Switch (Climate Control (DPMS)) Connector End View

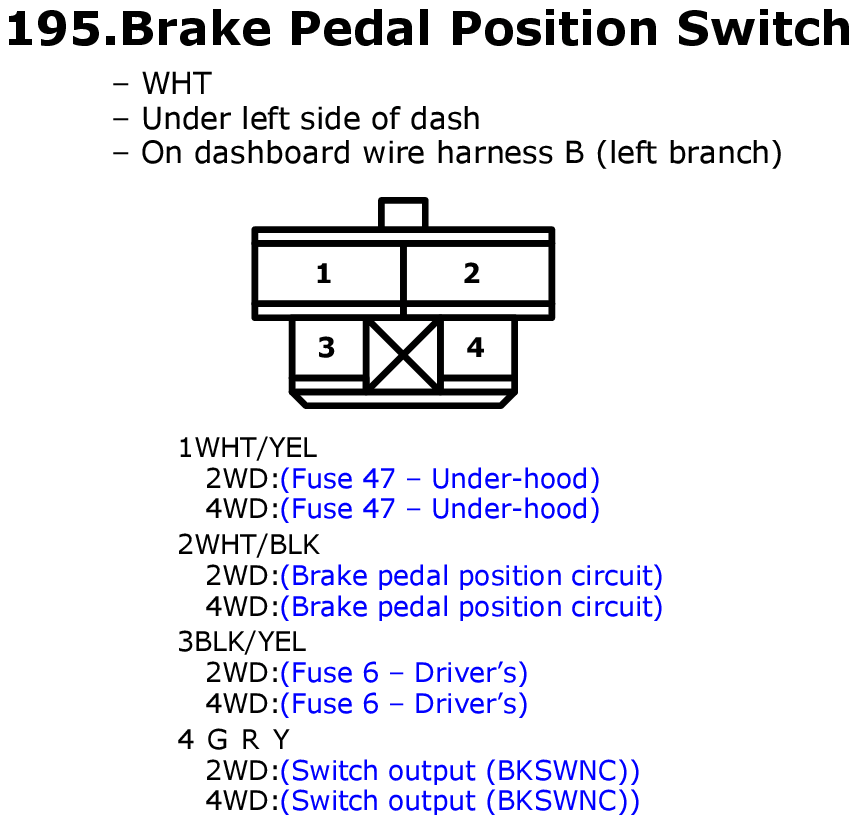

Fig 1: Brake Pedal Position Switch (Climate Control (DPMS)) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
