Component Location Index

4WD

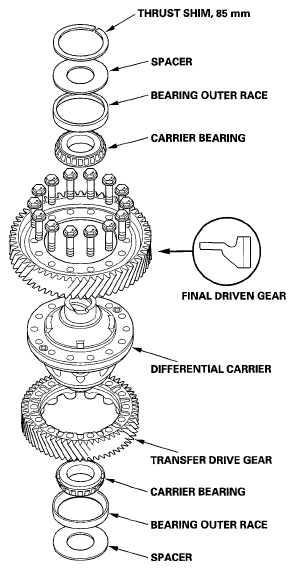

Fig 1: Disassembling View Of A/T Differential - 4WD
G05594345Courtesy of AMERICAN HONDA MOTOR CO., INC.

2WD

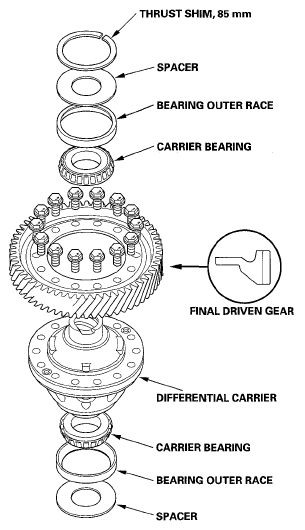

Fig 2: Disassembling View Of A/T Differential - 2WD
G05594346Courtesy of AMERICAN HONDA MOTOR CO., INC.
