Motor Test

  1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the lumbar support motor.

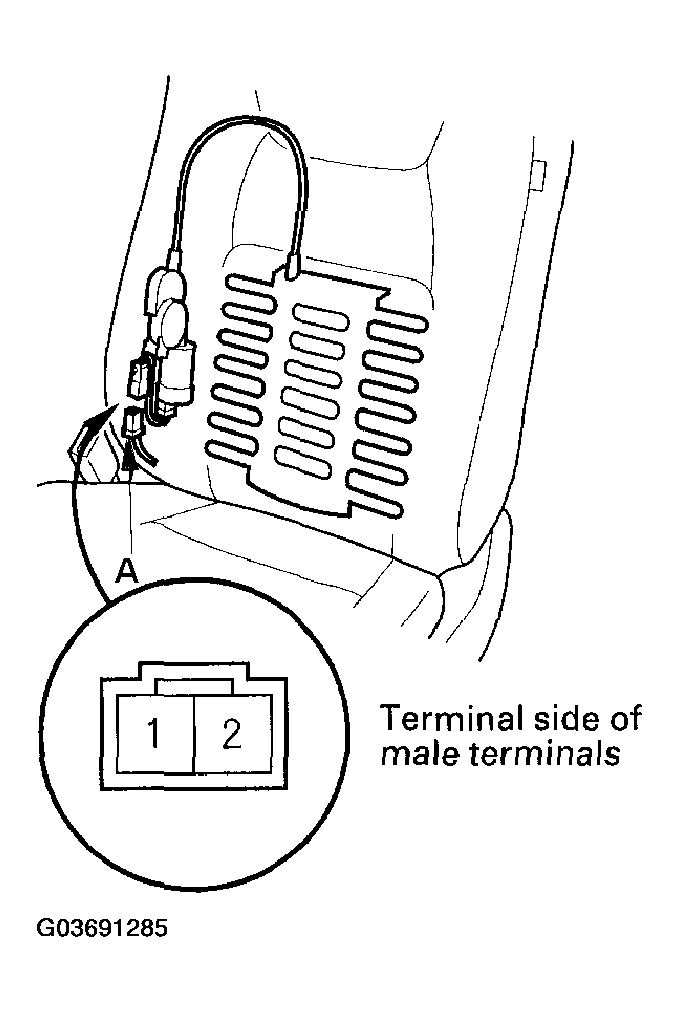

    Fig 1: Disconnecting 2P Connector (A) From Lumbar Support Motor
    G03691285Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Test each motor by applying battery voltage and body ground to the terminals.
    Fig 2: Switch Terminals Position Continuity Table
    G03691286Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the motor does not run or fails to run smoothly, replace it (see FOR SOME MODELS (DRIVER'S SEAT) ).
