Back Window Switch Connector End View
Back Window Switch Connector End View

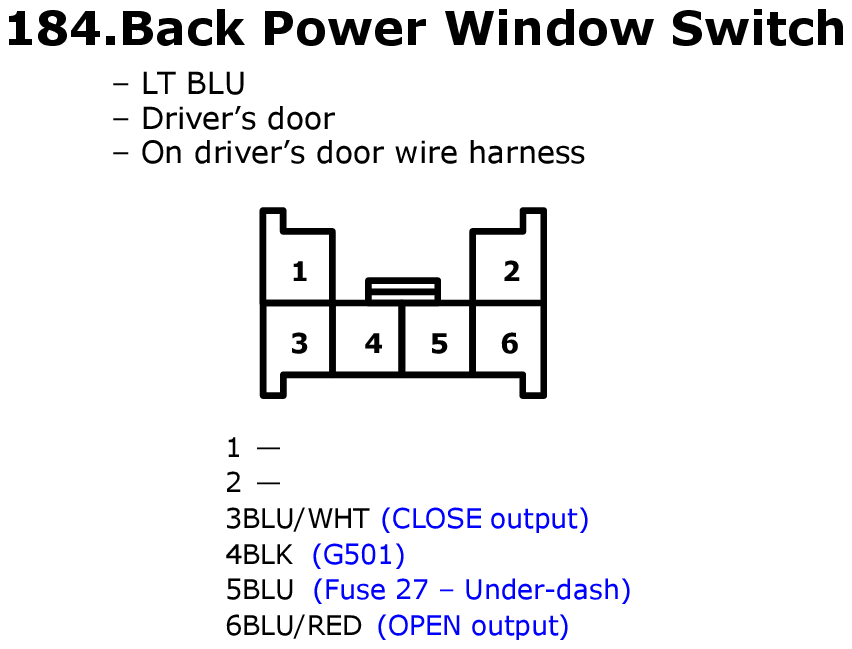

Fig 1: Back Window Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
