Occupant Detection System Connector End View
Occupant Detection System Connector End View

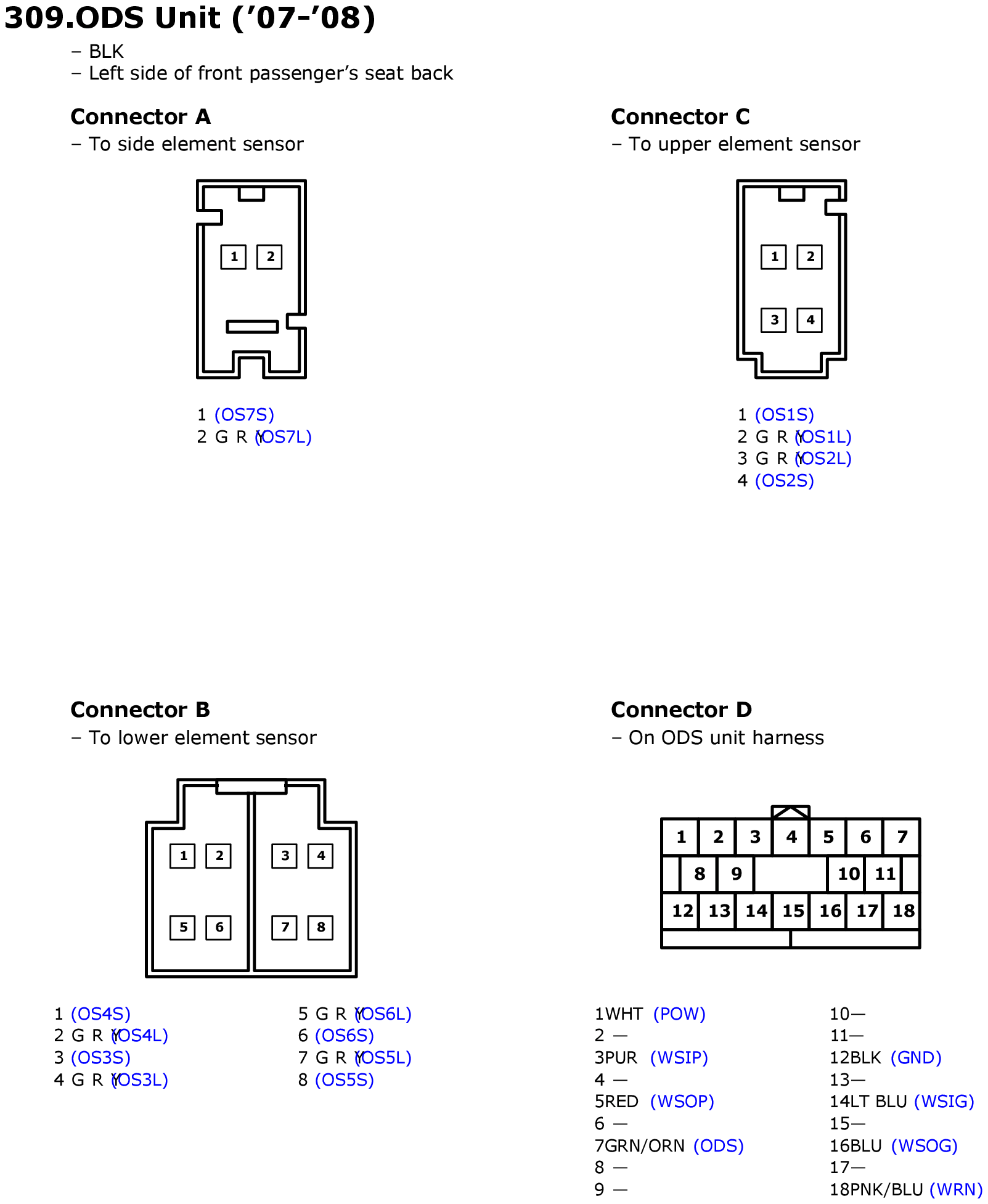

Fig 1: Occupant Detection System Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
