Select/Reset Switch Connector End View

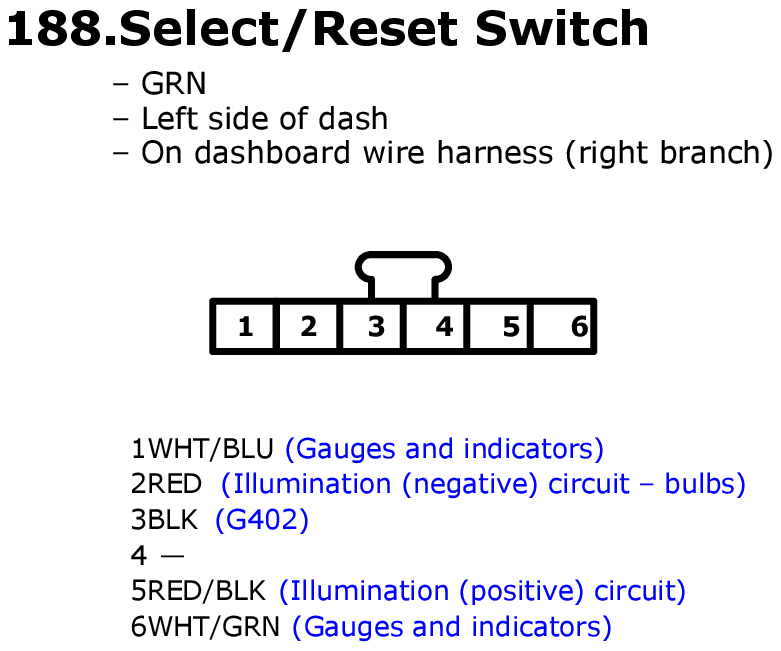

Fig 1: Select/Reset Switch Connector End View
GHHW6891Courtesy of AMERICAN HONDA MOTOR CO., INC.
