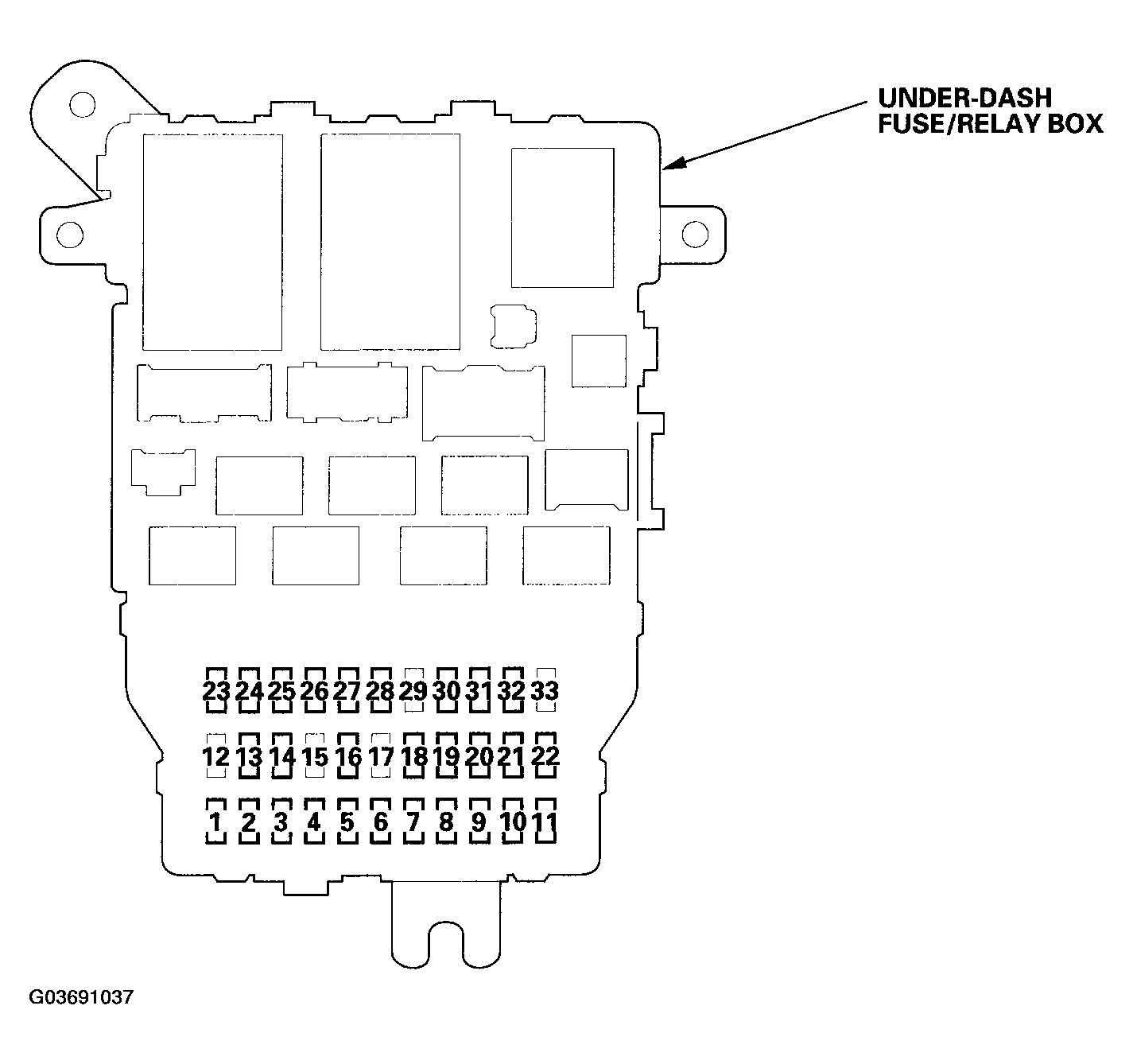

Underdash Fuse/Relay Box
UNDER-DASH FUSE/RELAY BOX CHART
| Fuse Number | Amps | Component(s) or Circuit(s) Protected |
|---|---|---|
| 1 | 7.5 A | Cargo area light relay |
| 2 | 15A | Ignition coil (IG) relay |
| Ignition coils (via ignition coil relay) | ||
| 3 | 10A | Daytime running lights relay (Canada) |
| 4 | 15A | These components via A/F sensor relay: A/F sensors (Bank 1, Bank 2), EVAP canister vent shut valve, Secondary heated oxygen sensors (Bank 1, Bank 2) |
| 5 | 20 A | Audio unit |
| 6 | 10A | Ambient light, Ceiling light, Console box light 1, Courtesy lights, Map lights, Passenger's vanity mirror light |
| 7 | 7.5 A | Combination switch control unit, Door multiplex control unit, Gauge control module, Ignition key light, Immobilizer control unit-receiver, Navigation display unit, Navigation unit, Security indicator, XM receiver |
| MICU | ||
| 8 | 20 A | MICU |
| 9 | 10A | Rear accessory power socket (via accessory power socket relay) |
| 10 | 7.5 A | OPDS unit, SRS unit |
| 11 | 30 A | Windshield wiper motor |
| 12 | - | Not used |
| 13 | 10A | Driver's power lumber support motor |
| 14 | 20 A | Driver's power seat slide motor and front up-down motor |
| 15 | - | Not used |
| 16 | 20 A | Driver's power seat recline motor and rear up-down motor |
| 17 | - | Not used |
| 18 | 15A | Alternator, Brake pedal position switch. Cruise control main switch, ELD unit, EVAP canister purge valve, PCM, VTM-4 relay |
| 19 | 15A | PCM, Immobilizer control unit-receiver |
| Fuel pump (via fuel pump relay) | ||
| 20 | 7.5 A | Electrical compass, Windshield washer motor |
| 21 | 7.5 A | Headlight switch, Combination switch control unit, Dash lights brightness controller, Door multiplex control unit, Front passenger's power window switch indicator, Gauge control module, MICU, Relay control module, TPMS control unit, VTM-4 control unit, VTM-4 switch |
| 22 | 10A | SRS unit |
| 23 | 7.5 A | Radiator fan relay (via A/C diode) |
| PCM (via A/F sensor relay) | ||
| A/F sensor relay | ||
| 24 | 20 A | Left rear power window motor |
| 25 | 20A | Right rear power window motor |
| 26 | 20 A | Front passenger's power window motor |
| 27 | 20 A | Back window motor |
| 28 | 20 A | Power window master switch |
| 29 | - | Not used |
| 30 | 7.5 A | A/C diode, A/C compressor clutch relay, Blower motor relay, Climate control unit, Heated windshield wiper area relay, HVAC control unit, Power mirror defoggers, power mirror actuators, Recirculation control motor, Seat heater relay, Trailer lighting relay (optional) |
| 31 | 7.5 A | Steering angle sensor, Yaw rate-rateral acceleration sensor, VSA modulator-control unit |
| 32 | 7.5A | Accessory power socket relays, Audio unit, Front accessory power socket relay, Gauge control module, Key interlock solenoid, MICU, Navigation display unit, Navigation unit, Shift lock solenoid |
| 33 | - | Not used |
