Relays And Control Unit Locations: Dashboard

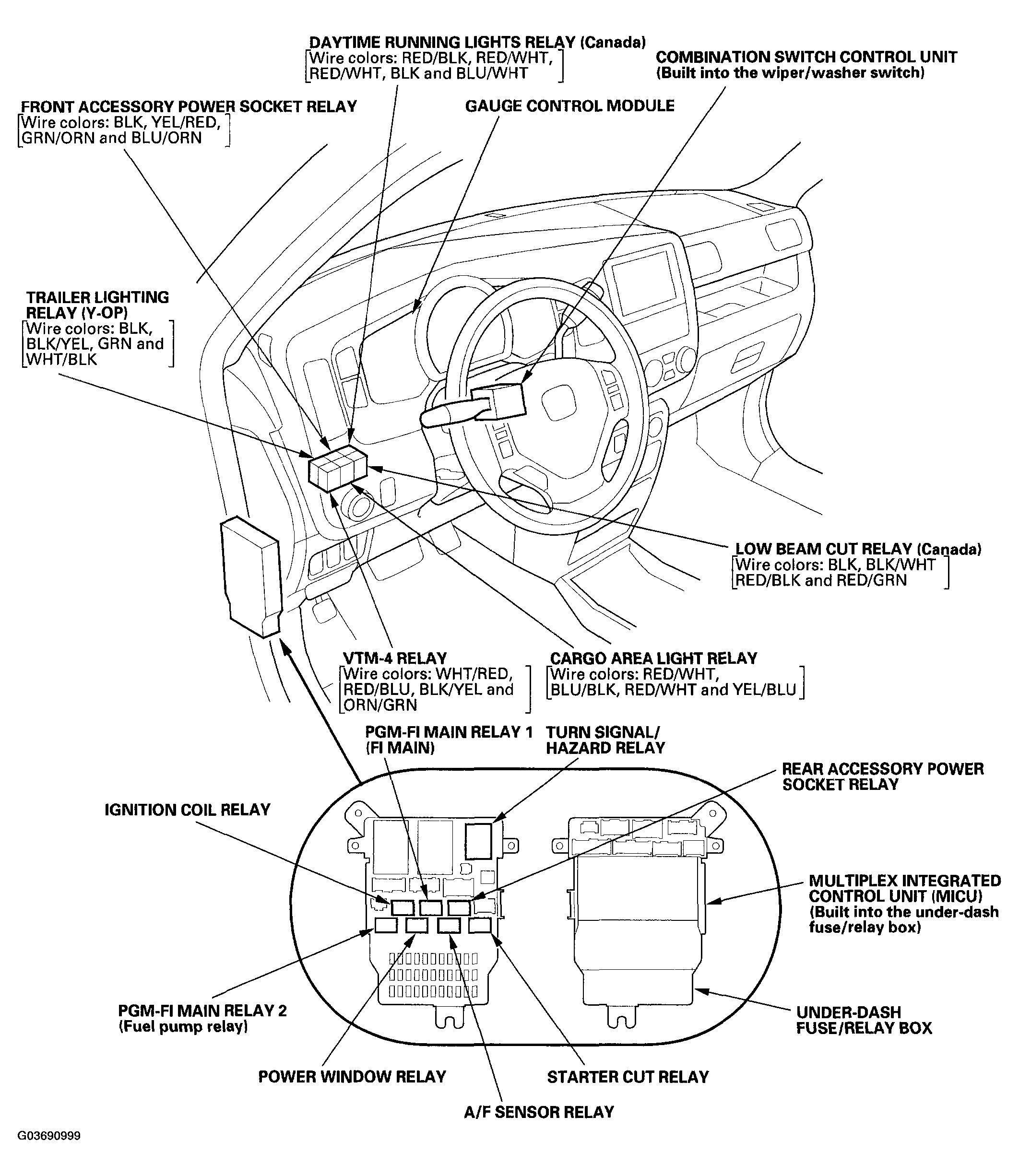

Fig 1: Identifying Relay And Control Unit Locations Dashboard (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

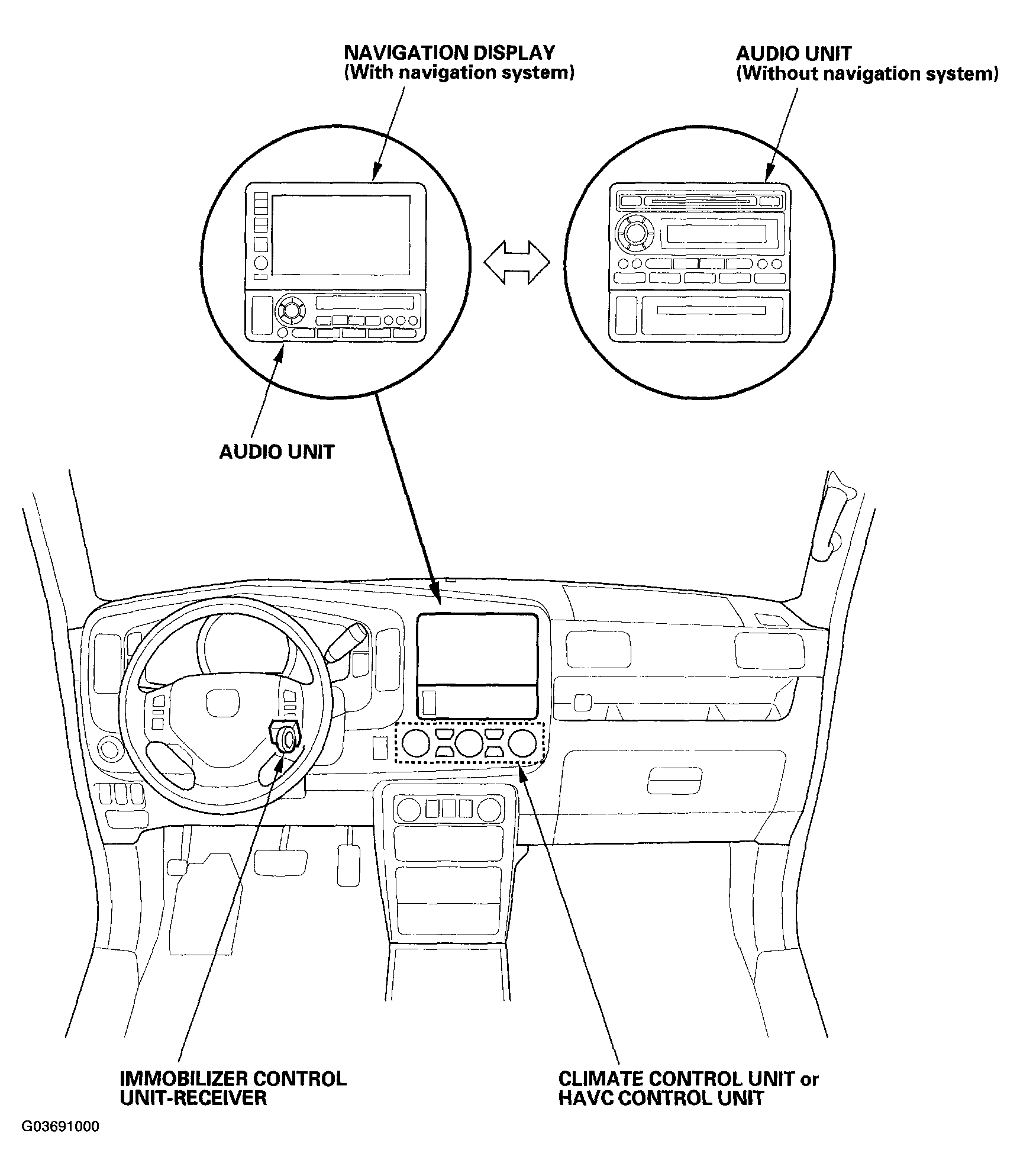

Fig 2: Identifying Relay And Control Unit Locations Dashboard (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

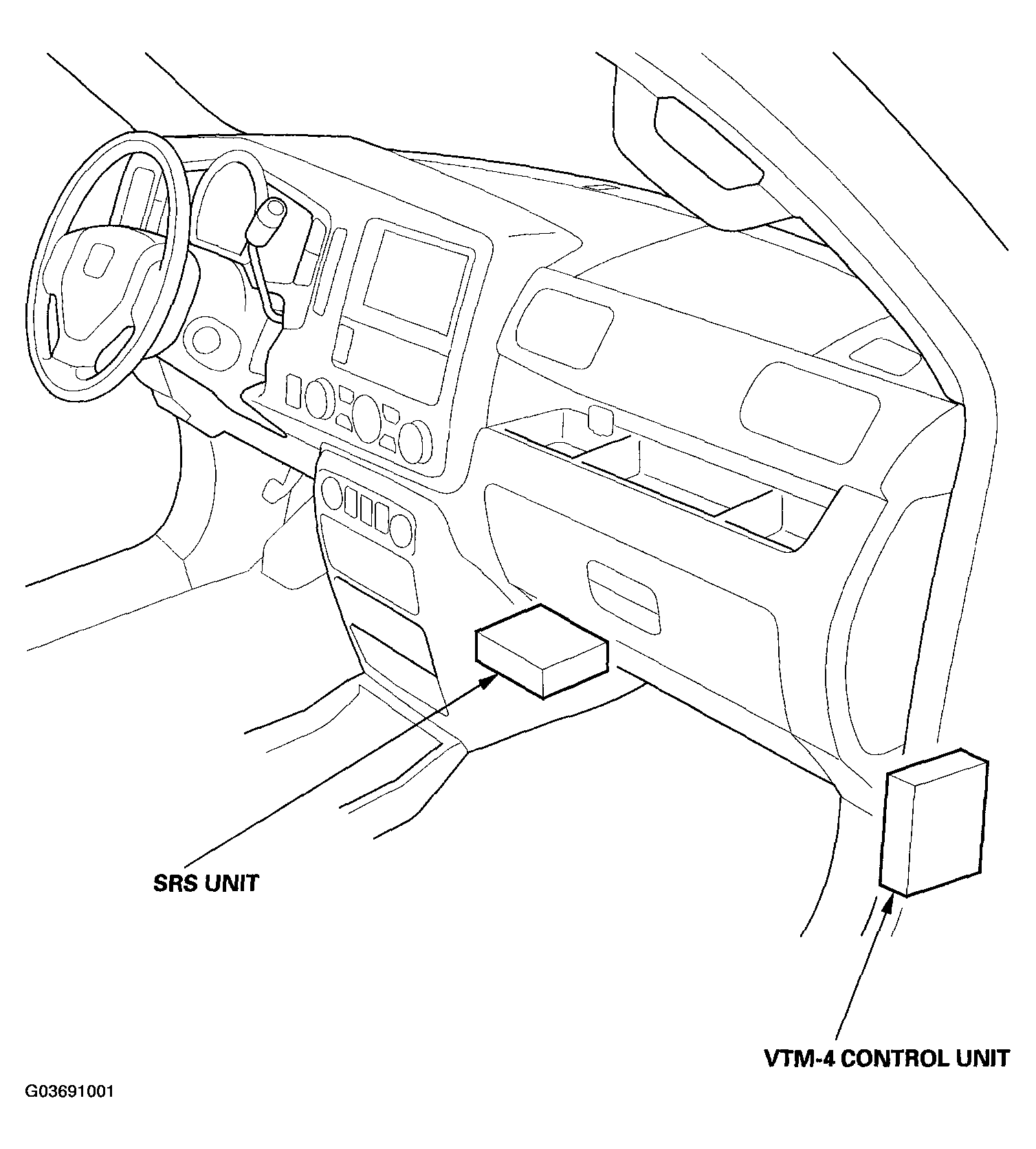

Fig 3: Identifying Relay And Control Unit Locations Dashboard (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
