Circuit Diagram

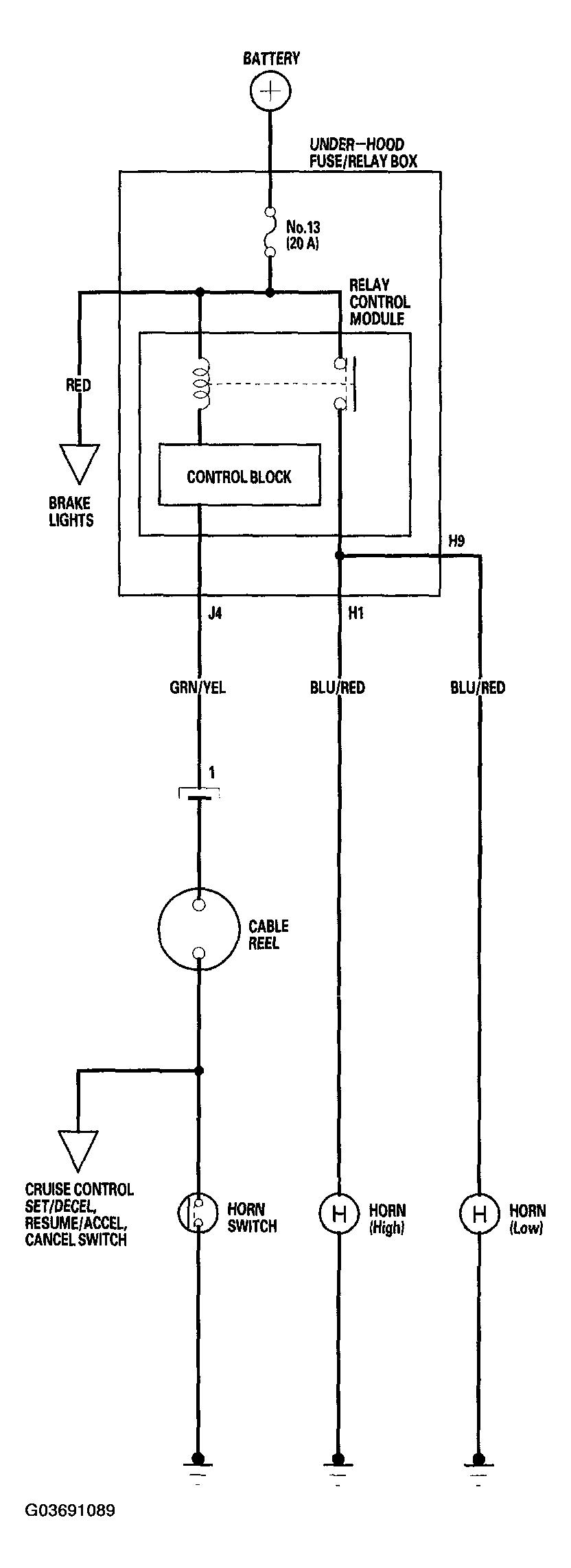

Fig 1: Horns System - Circuit Diagram
G03691089Courtesy of AMERICAN HONDA MOTOR CO., INC.
