Oil Pump Overhaul: Notes

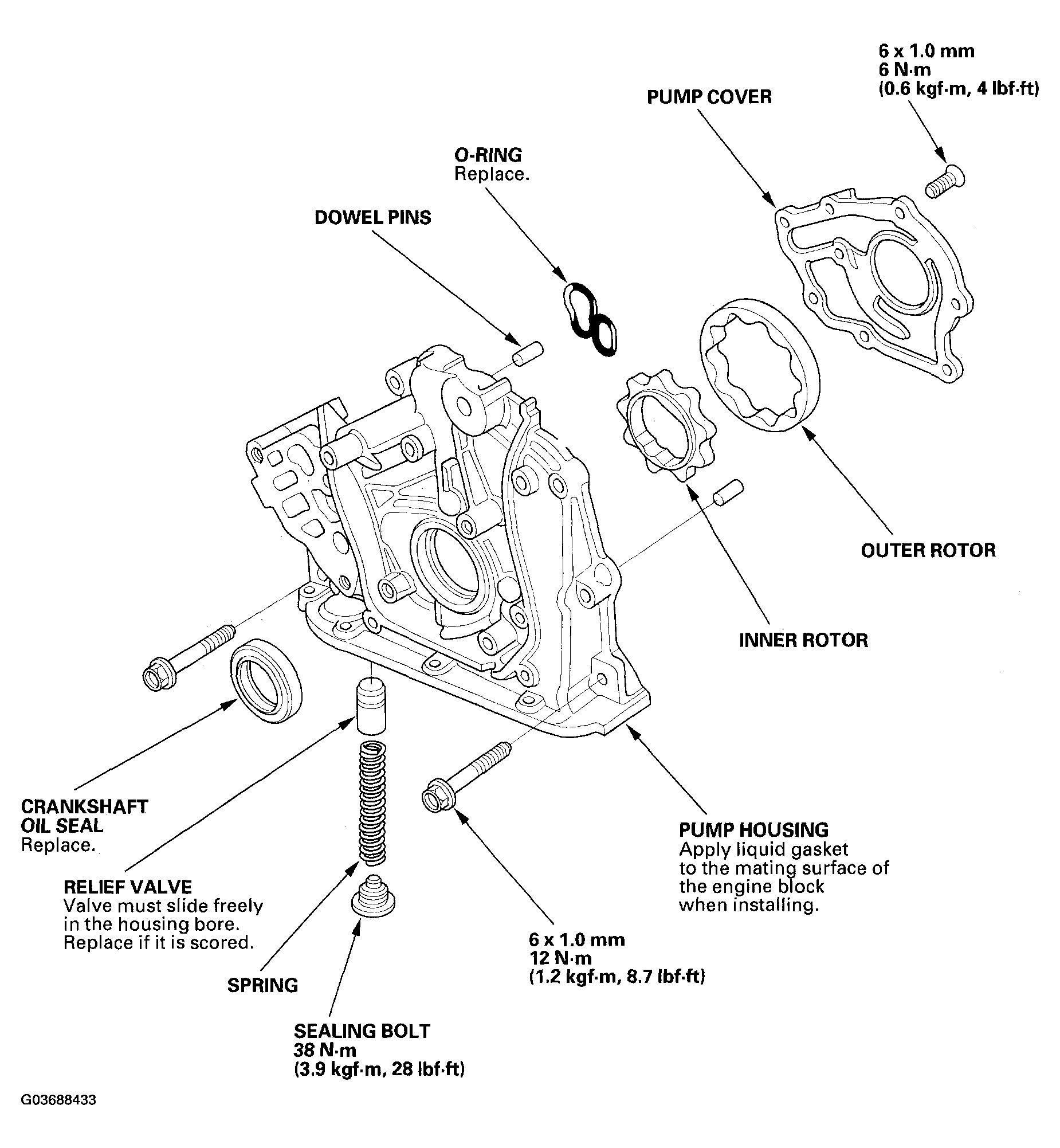

Exploded View
Special Tools Required
- Oil seal driver, 64 mm 070AD-RCAA100
- Engine support hanger, A and Reds AAR-T-12566
- Engine hanger adapter set VSB02C000024
These special tools are available through Honda Tool and Equipment program, 888-424-6857.
