Wiper/Washer Switch Test/Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Disconnect the 14P connector (A) from the wiper/washer switch (B).

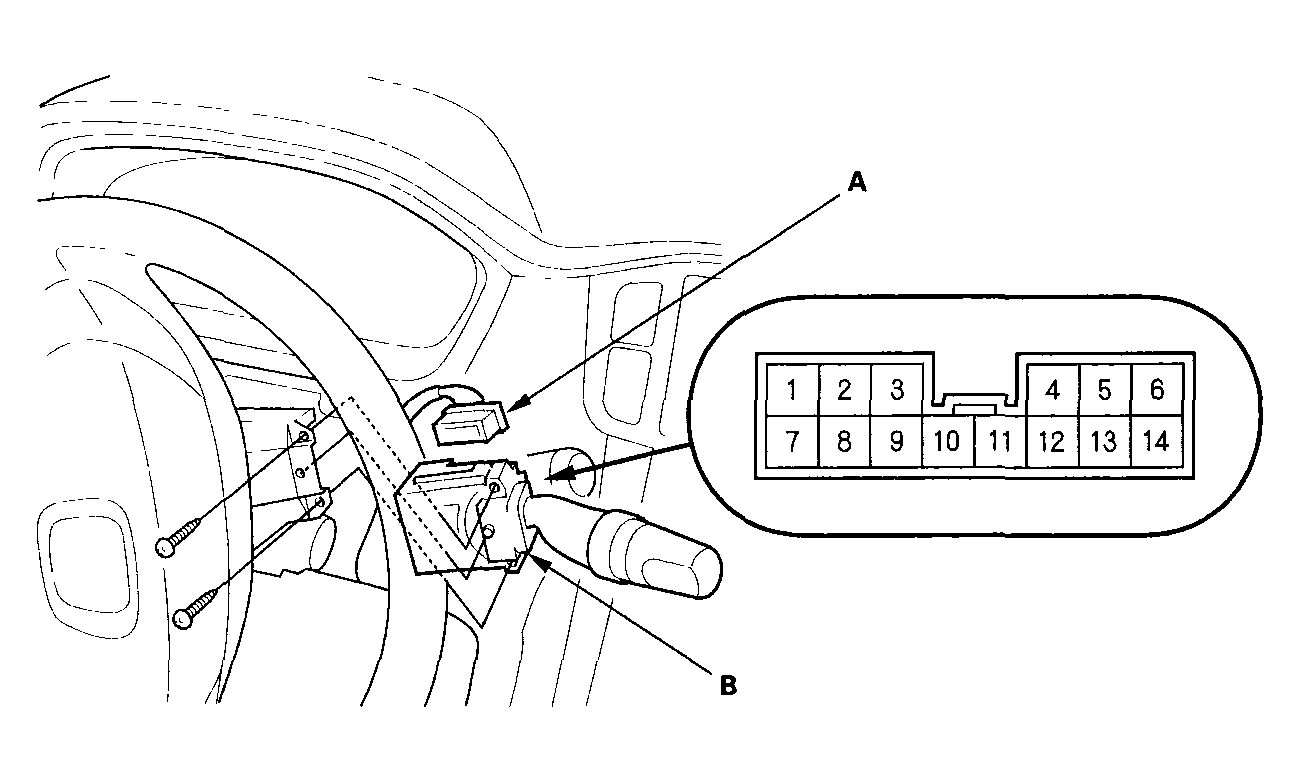

    Fig 1: Disconnecting Connector From Wiper/Washer Switch
    G04247271Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the two screws, then pull out the wiper/washer switch.
  5. Inspect the connector terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, check for continuity between the terminals in each switch position according to the tables.

      Windshield:

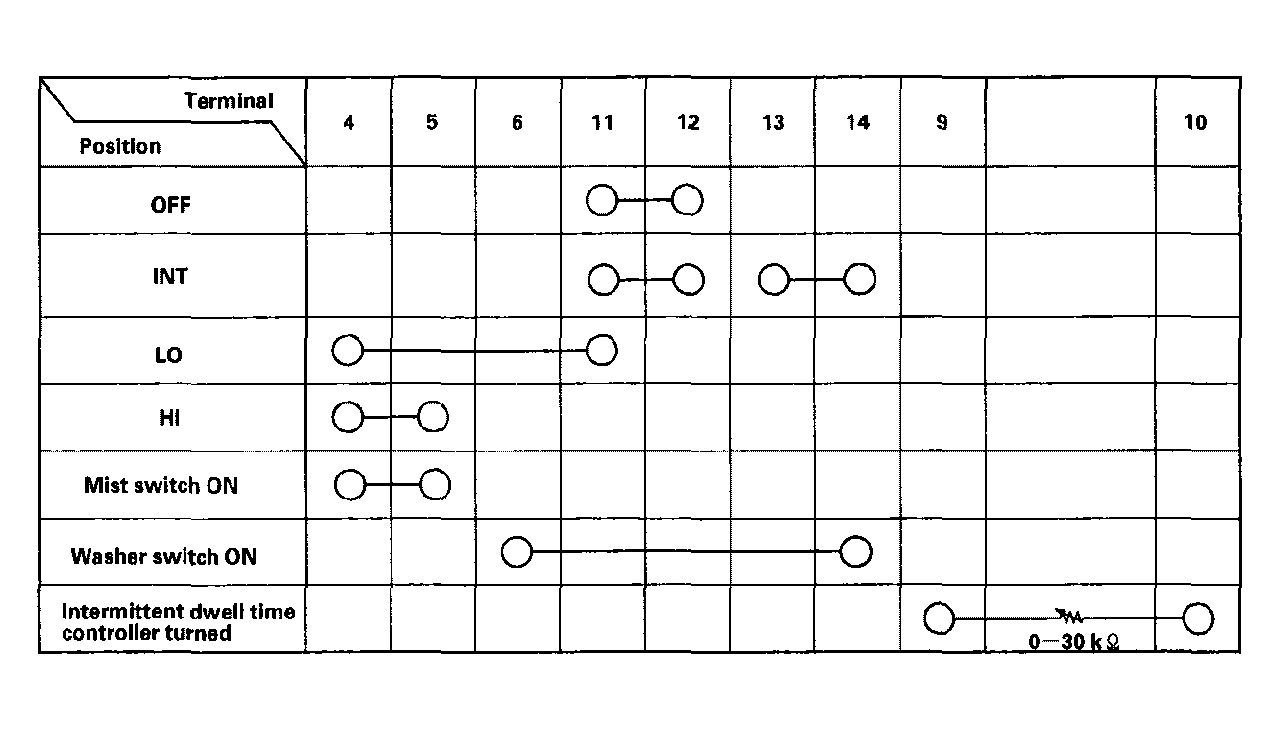

      Fig 2: Inspecting Connector Terminals (Windshield)
      G04247272Courtesy of AMERICAN HONDA MOTOR CO., INC.

      Rear Window:

      Fig 3: Inspecting Connector Terminals (Rear Window)
      G04247273Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. If the continuity check is not as specified, replace the switch.
