Outside Air Temperature Sensor Test

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Dip the sensor in ice water, and measure the resistance. Then pour warm water on the sensor, and check for a change in resistance.

Compare the resistance reading between the No. 1 and No. 2 terminals of the outside air temperature sensor with the specifications shown in Fig 1; the resistance should be within the specifications.

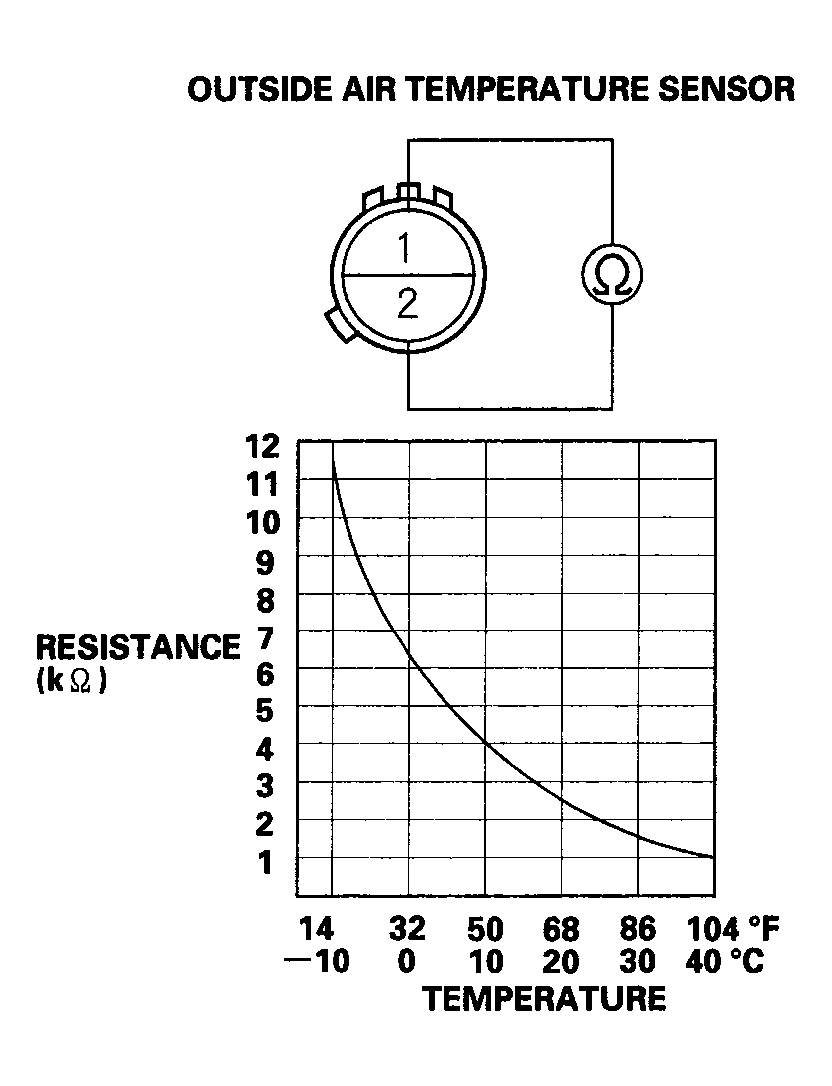

Fig 1: Checking Resistance Between No. 1 & No. 2 Terminals Of Outside Air Temperature Sensor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
