Door Lock Switch Test

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the two screws, then remove the door lock switch.

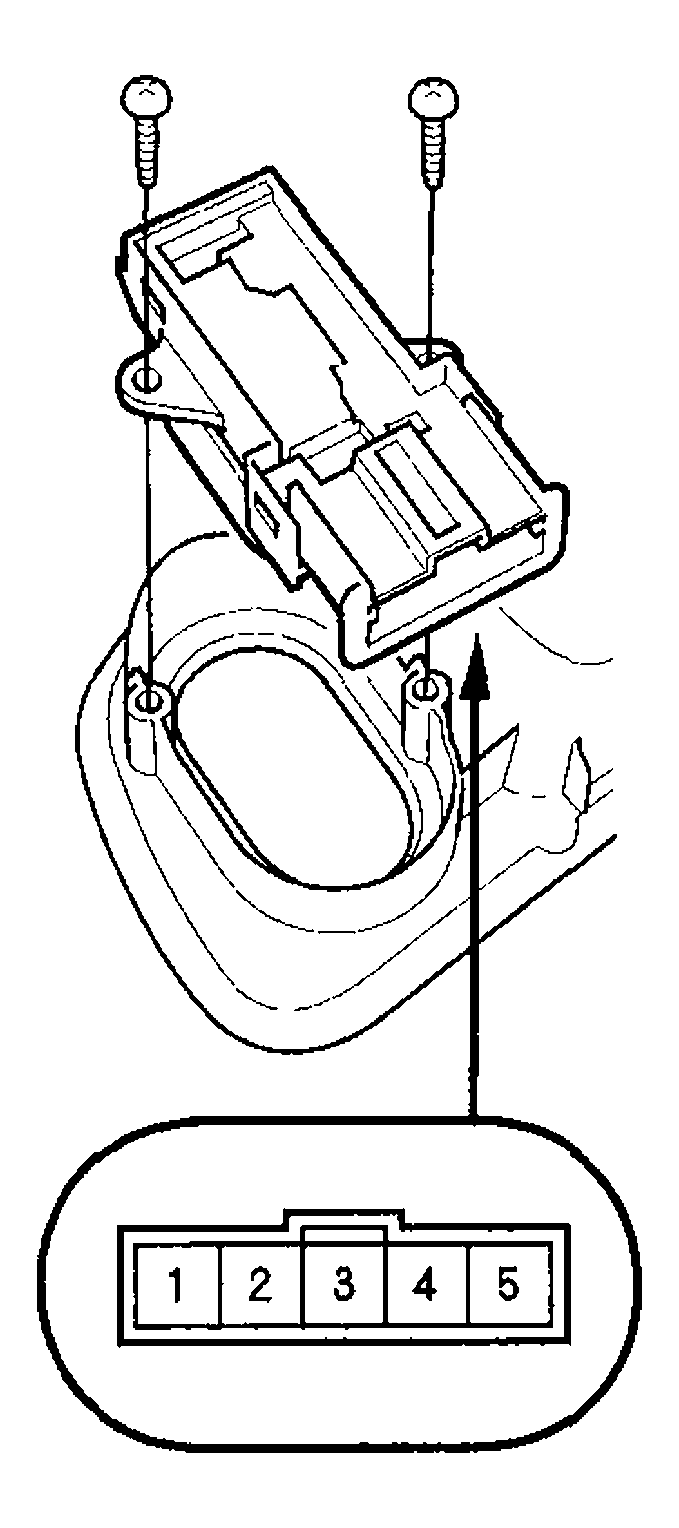

    Fig 1: Removing Door Lock Switch & Screws
    G04247361Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Check for continuity between the terminals.
    • There should be continuity between the No. 1 and No. 2 terminals when the door lock switch is in the LOCK position.
    • There should be no continuity between the No. 1 and No. 2 terminals when the door lock switch is in the neutral position.
    • There should be continuity between the No. 2 and No. 3 terminals when the door lock switch is in the UNLOCK position.
    • There should be no continuity between the No. 2 and No. 3 terminals when the door lock switch is in the neutral position.
    • Except LX: There should be continuity between the No. 5 (+) and No. 4 (-) terminals under all condition.
  4. If the continuity is not as specified, replace the switch.
