Right Front TPMS Initiator Connector End View
Right Front TPMS Initiator Connector End View

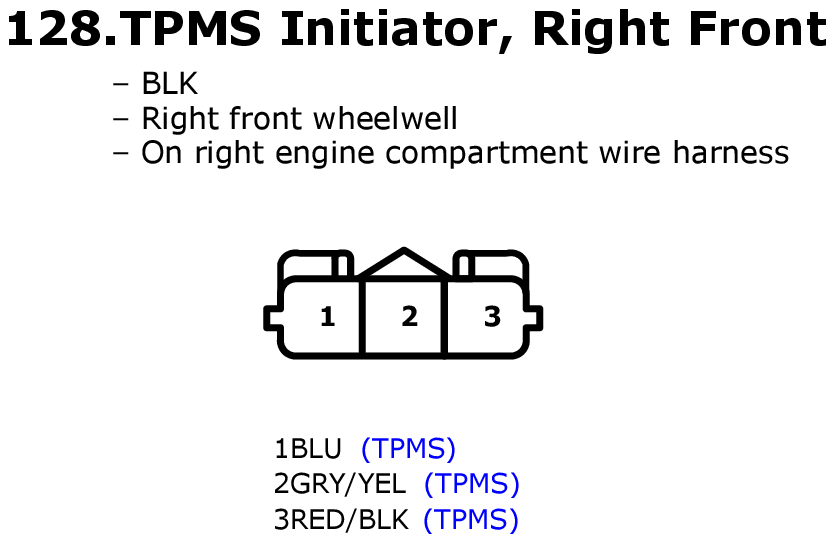

Fig 1: Right Front TPMS Initiator Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
