Transmission Range Switch Connector End View
Transmission Range Switch Connector End View

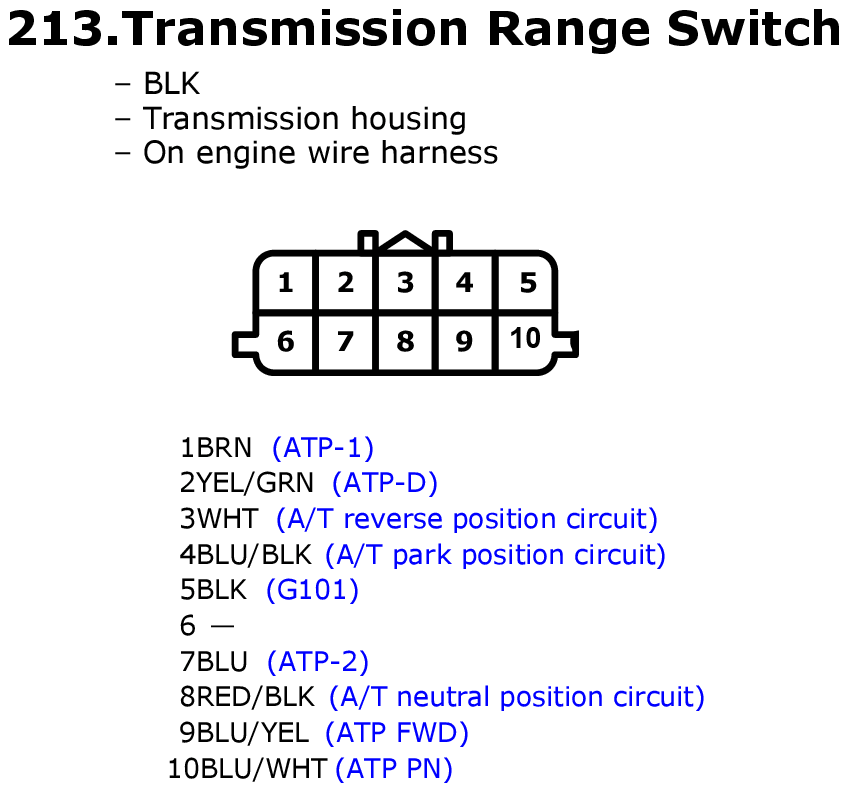

Fig 1: Transmission Range Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
