Exploded View

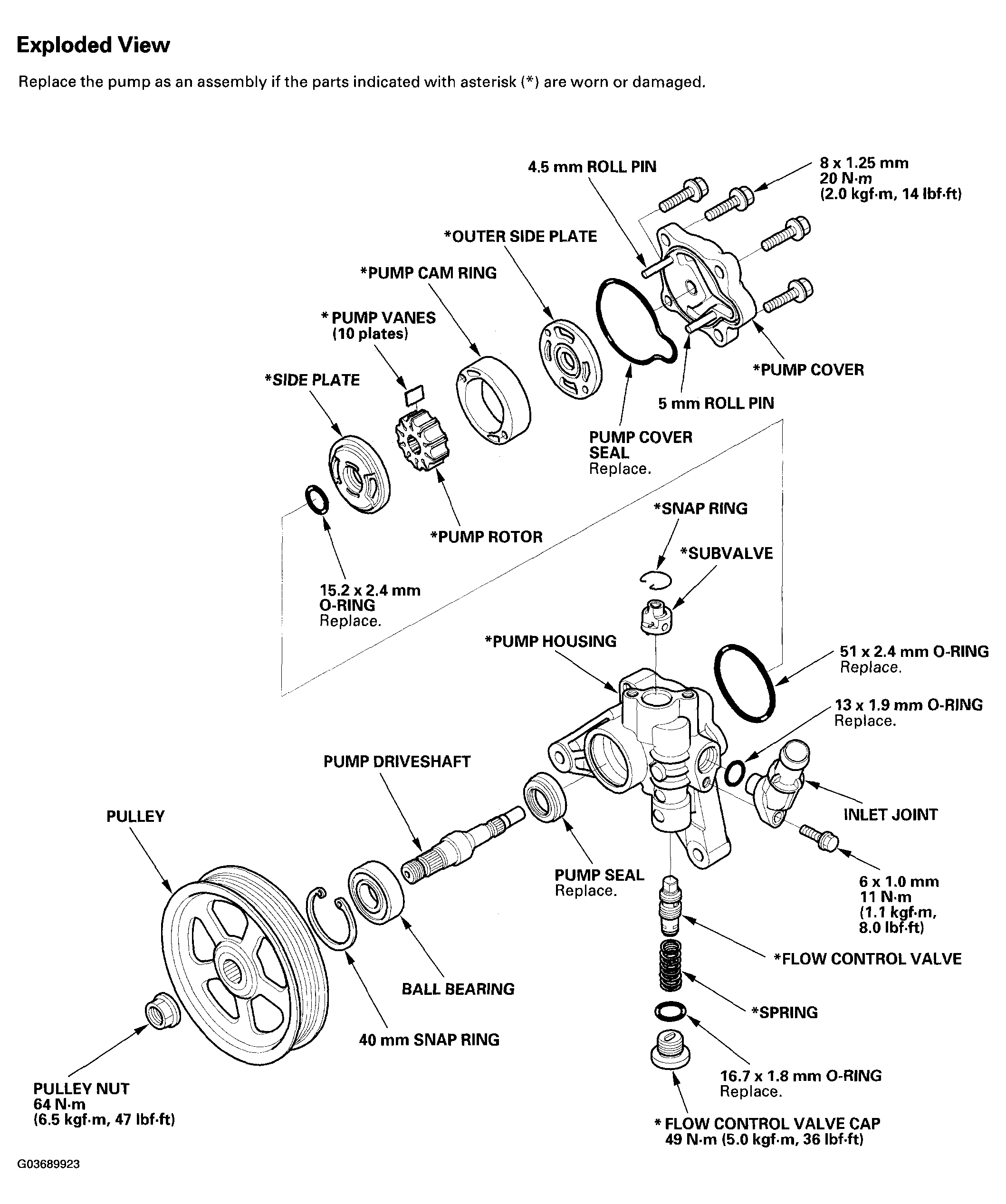

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Attachment, 28 x 30 mm 07946-1870100
• Driver 07749-0010000
• Pulley holder 07ZAB-S5A0100
