Exploded View

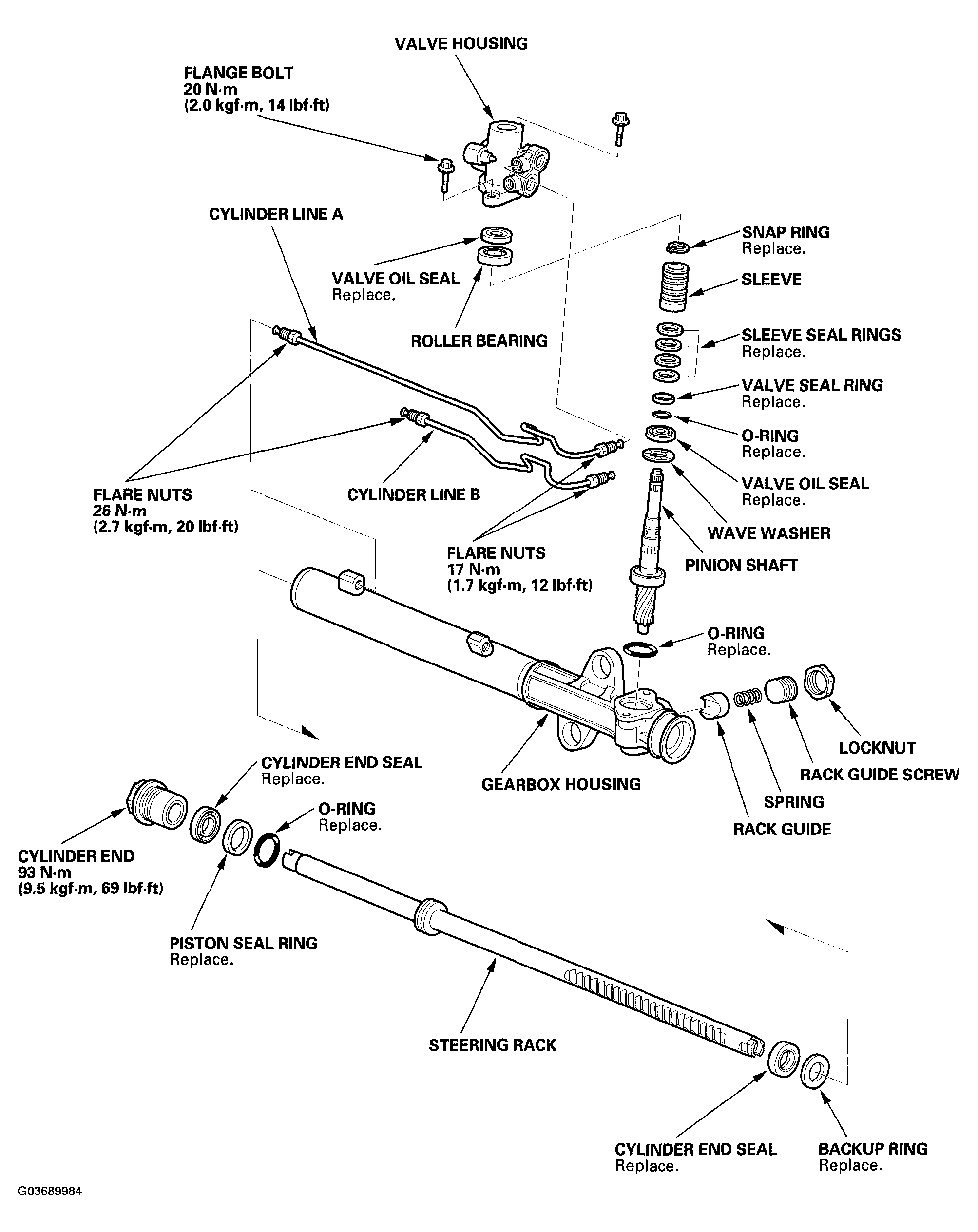

Fig 1: Exploded View Of Steering Gearbox With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Cylinder end seal remover attachment 07TAF-SZ50100
• Pilot collar 07GAF-PH70100
• Valve seal ring sizing tool 07NAG-SR3090A
• Ball joint boot clip guide 07974-SA50800
• Sleeve seal ring sizing tool 07974-SA5020A or 07974-SA50200
• Attachment, 32 x 35 mm 07746-0010100
• Driver 07749-0010000
• Piston seal ring guide 07ZAG-S3VA100
• Piston seal ring sizing tool 07ZAG-S3VA200
• Pincers Oetiker 1098 or equivalent, commercially available
