PCM A/T Control System Electrical Connections
PCM A/T Control System Electrical Connections

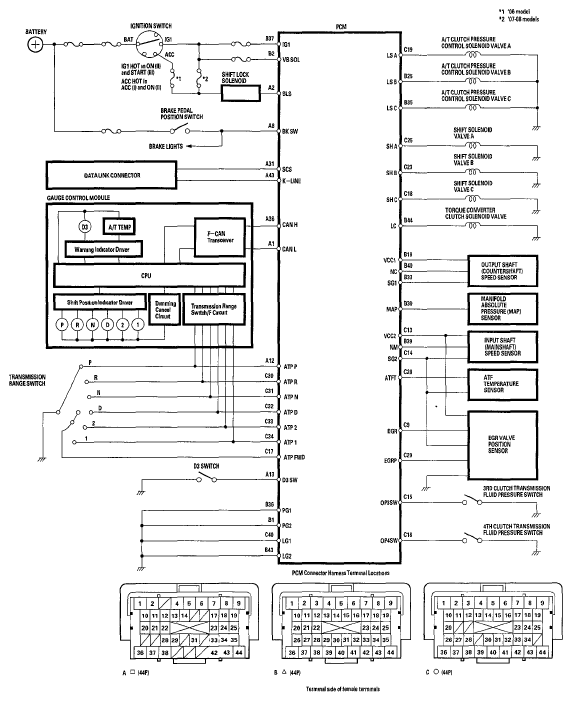

Fig 1: PCM A/T Control System Electrical Connections Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
