Circuit Diagram - PCM A/T Control System
Circuit Diagram - PCM A/T Control System

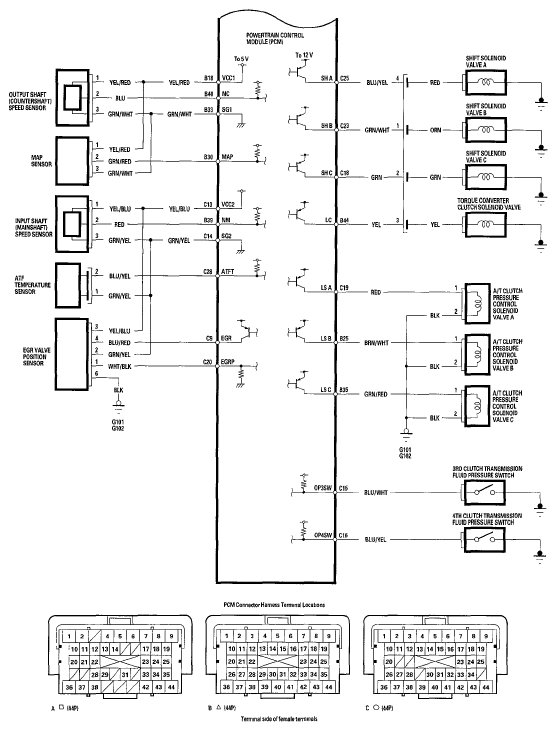

Fig 1: Circuit Diagram - PCM A/T Control System (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

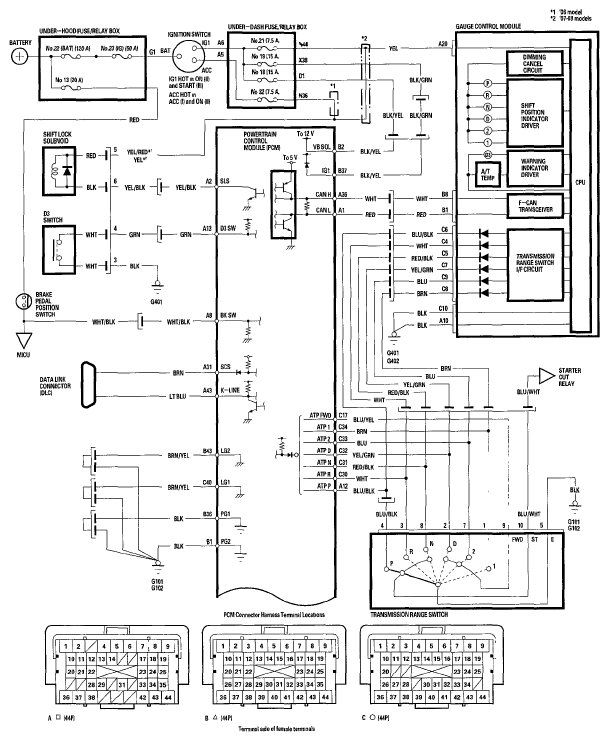

Fig 2: Circuit Diagram - PCM A/T Control System (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
