Receiver/Dryer Desiccant Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

Remove the A/C condenser (see A/C CONDENSER REPLACEMENT ).
Remove the cap (A) from the bottom of the A/C condenser, then remove the O-rings (B), the filter (C) and the desiccant (D).

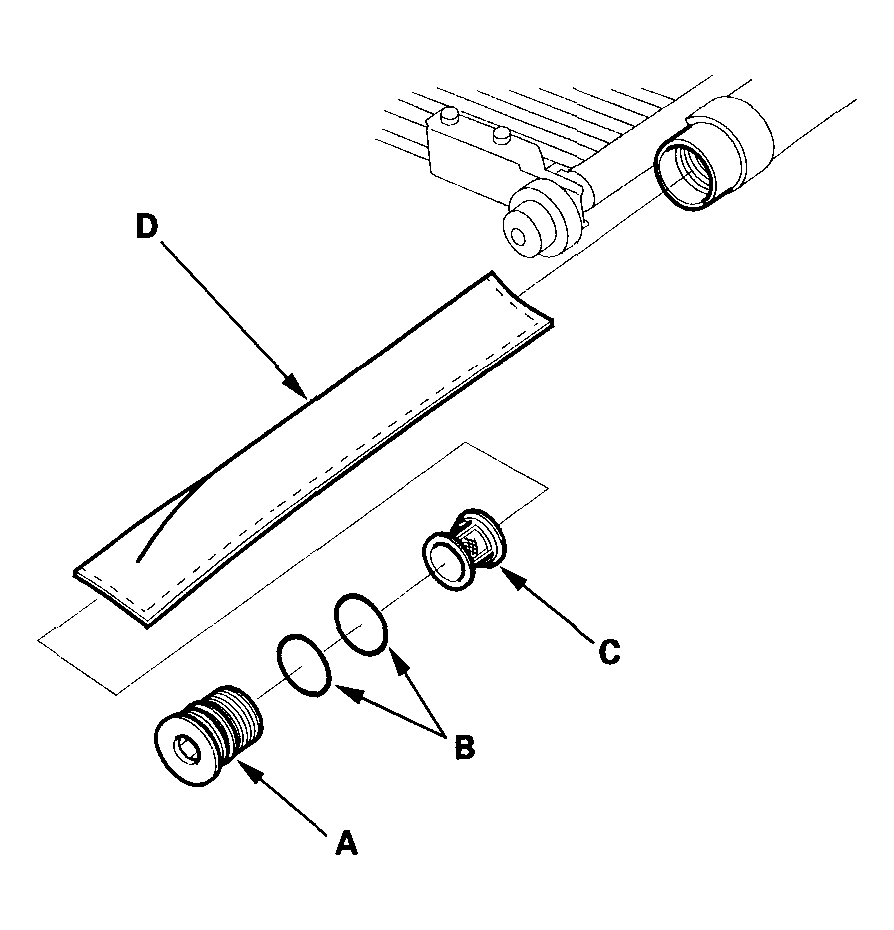

Fig 1: Removing Cap From Bottom Of A/C Condenser, Then Remove O-Rings, Filter & Desiccant
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the desiccant in the reverse order of removal, and note these items:
Replace the O-rings with new ones, and apply a thin coat of refrigerant oil (DENSO ND-OIL 8) before installing them. Be sure to use the correct O-rings for HFC-134a (R-134a) to avoid leakage.
