Engine Mount Control Unit Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger's console side trim (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the engine mount control unit 20P connector (A).

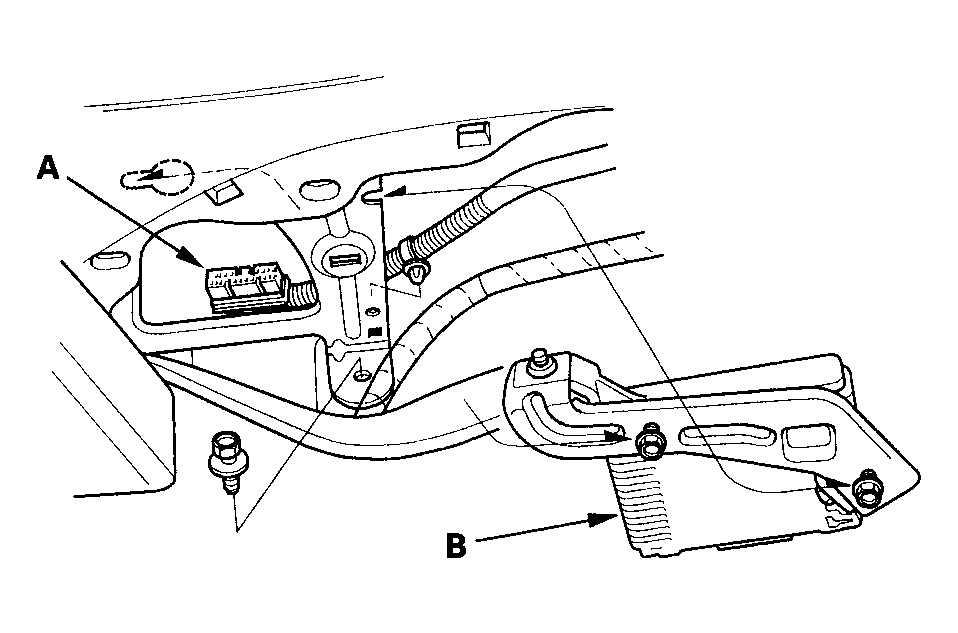

    Fig 1: Disconnecting Engine Mount Control Unit 20P Connector
    G04245431Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts and the engine mount control unit (B).
  4. Install the engine mount control unit in the reverse order of removal.
