Top View

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

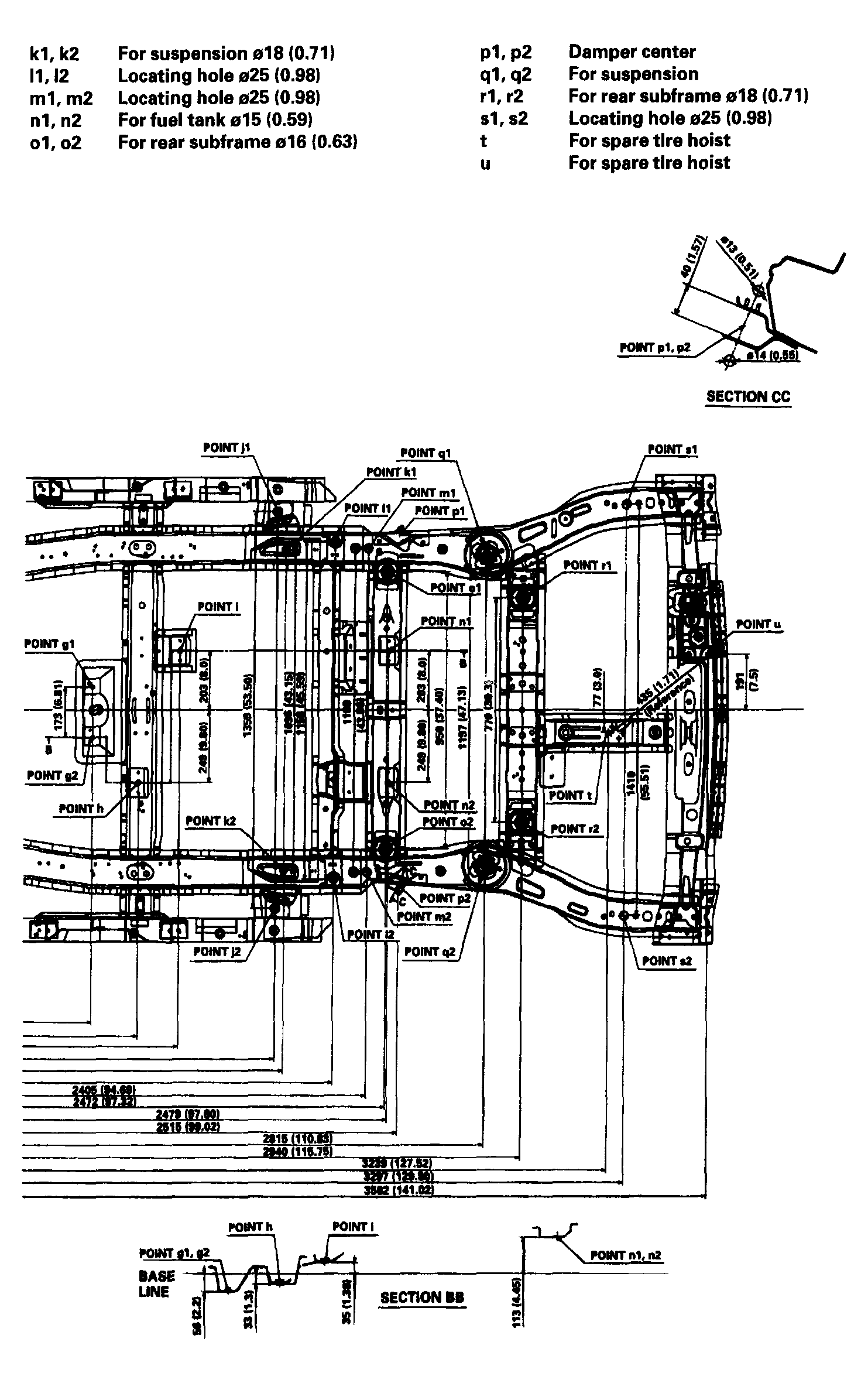

Fig 1: Frame Repair Chart - Top View (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

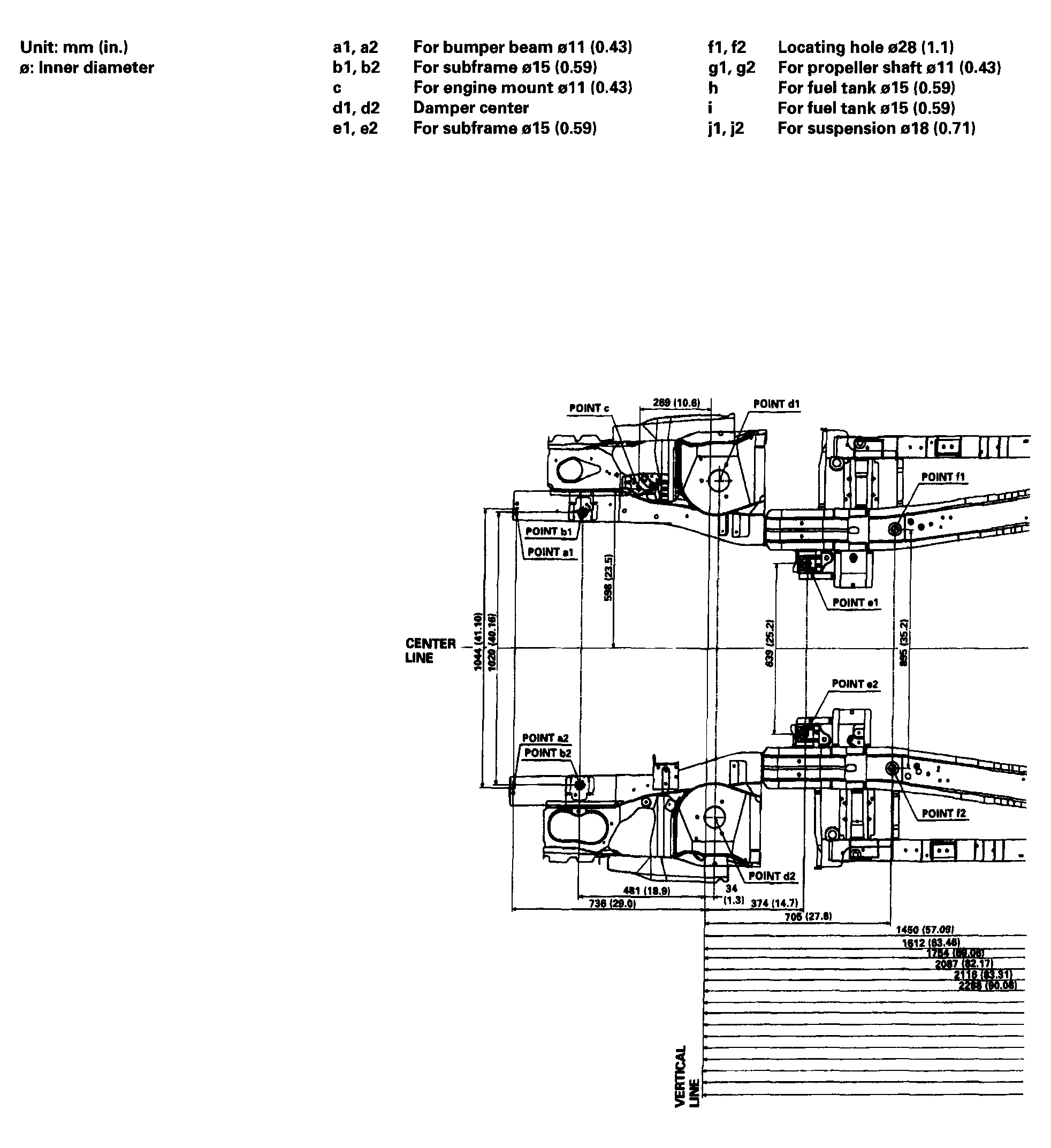

Fig 2: Frame Repair Chart - Top View (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
