Component Location Index

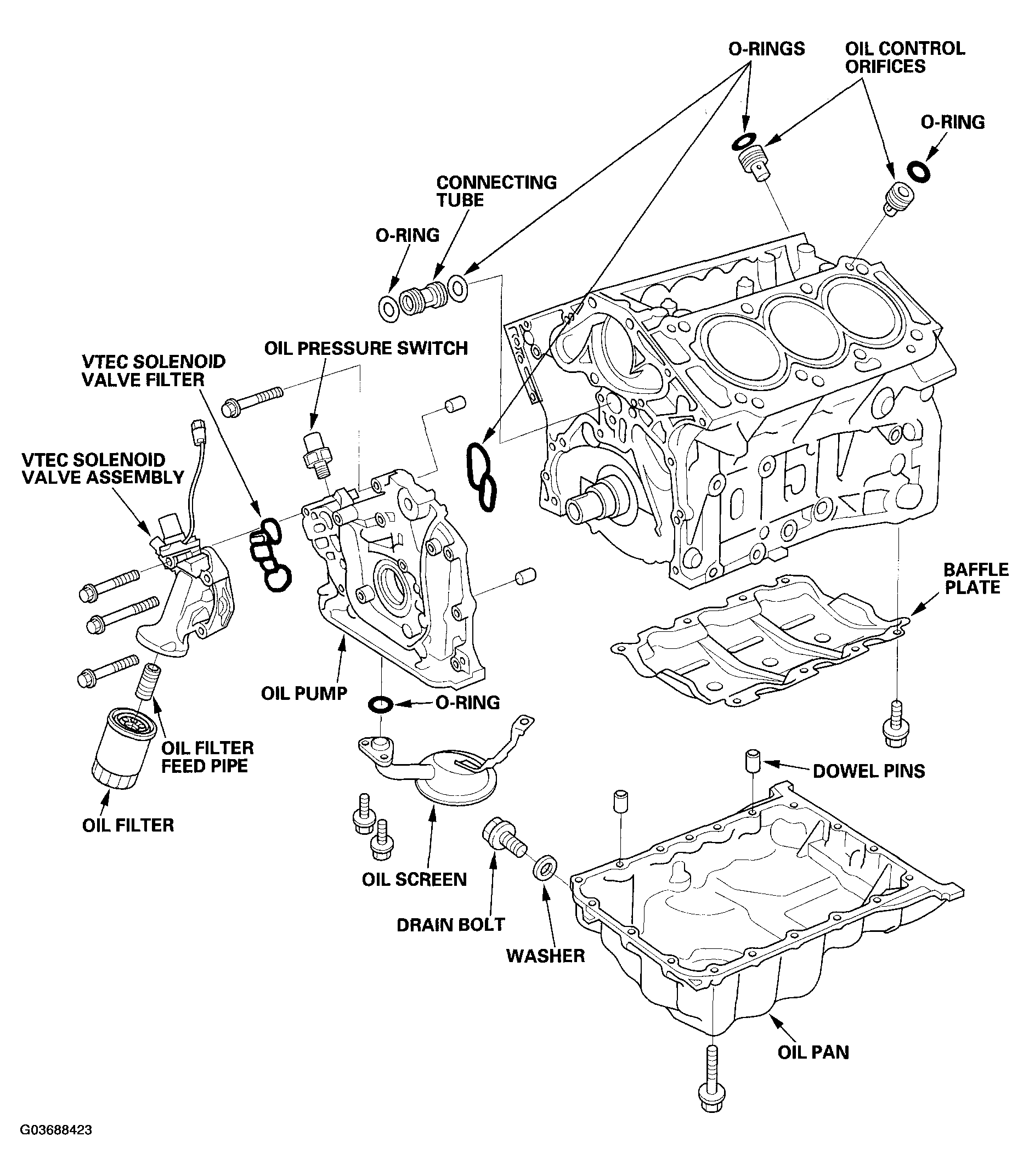

Fig 1: Identifying Component Location Engine Lubrication
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
