Automatic Transmission
›
System Description
›
Power Flow
›
Transmission Cutaway View
Transmission Cutaway View

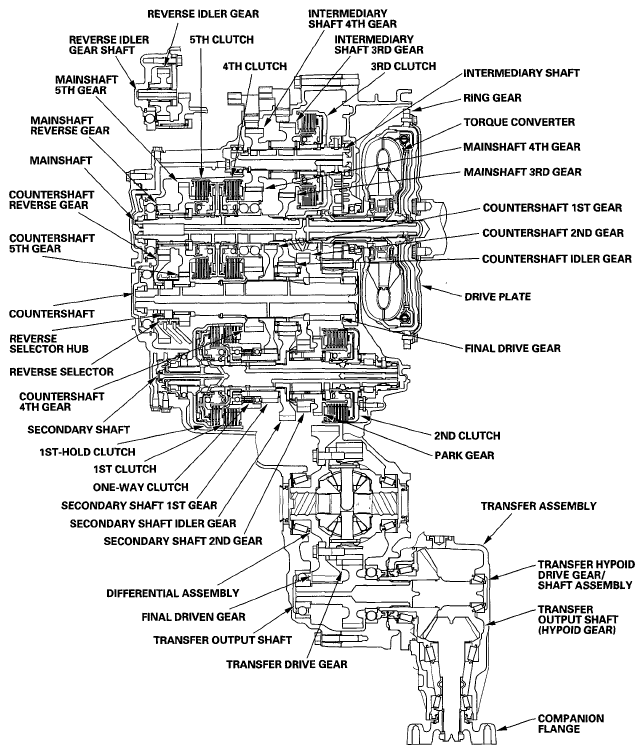

Fig 1: Cutaway View Of Transmission And Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
