DTC Troubleshooting Index

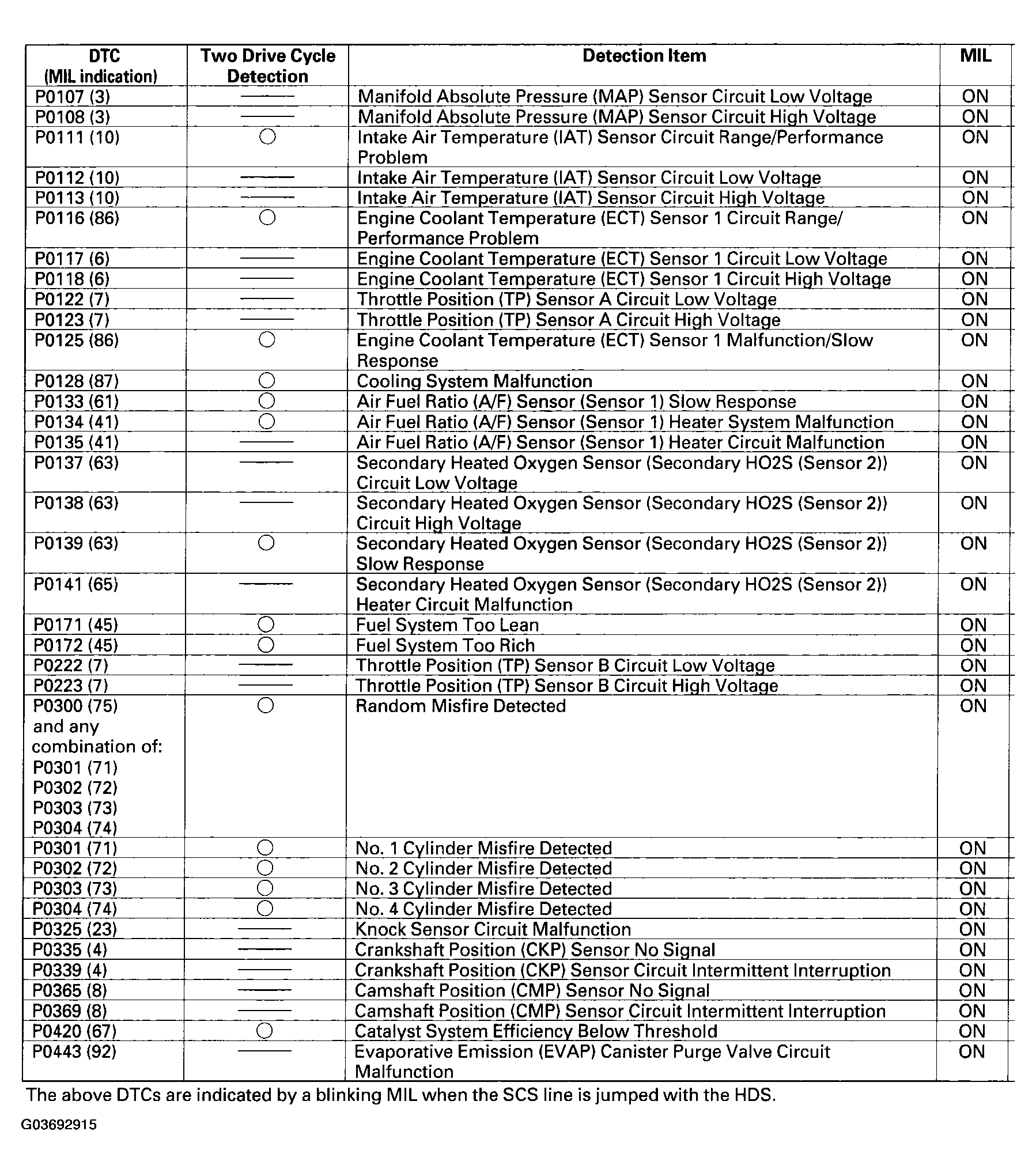

Fig 1: DTC Troubleshooting Index (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

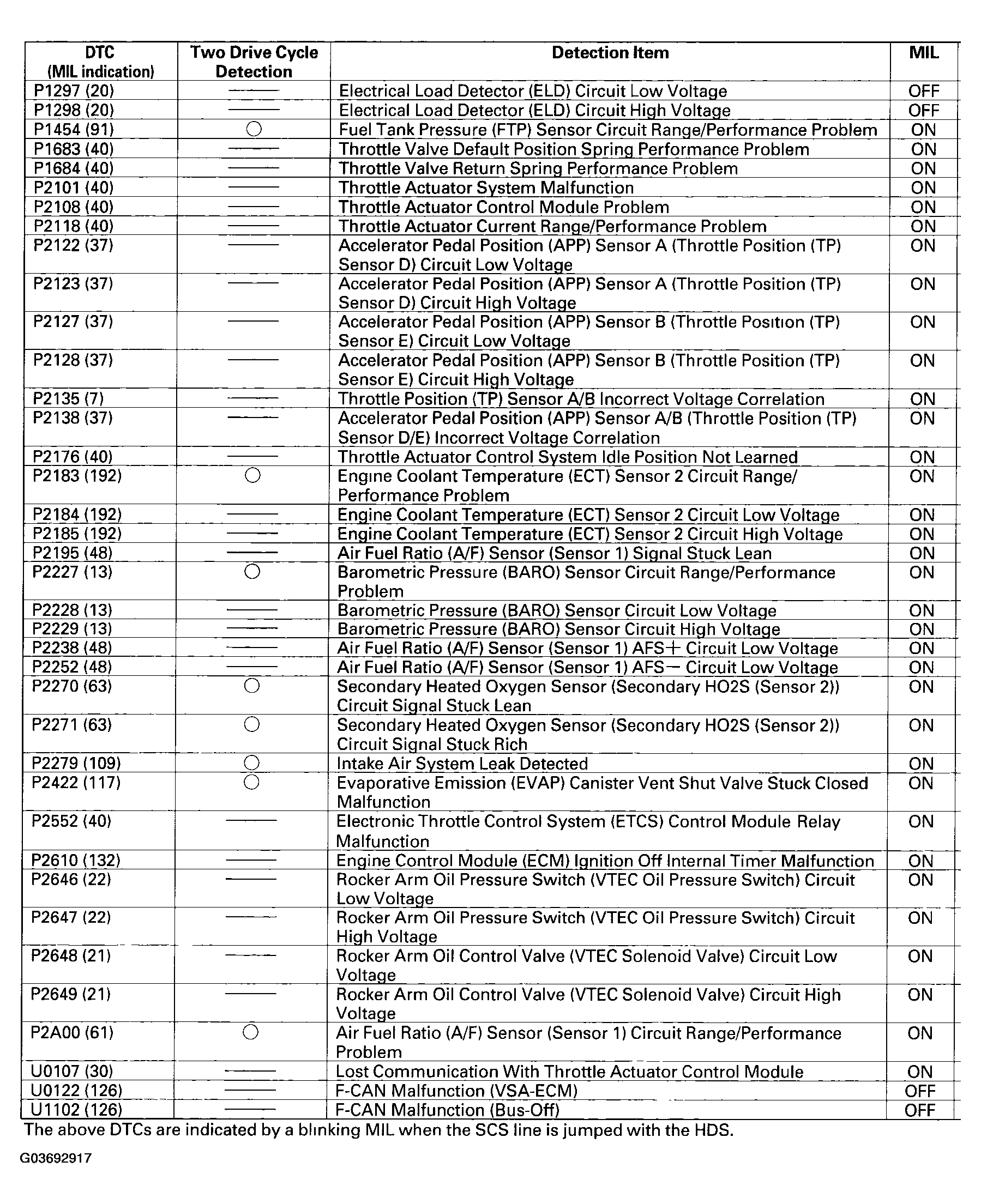

Fig 2: DTC Troubleshooting Index (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: DTC Troubleshooting Index (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
