Component Location Index

NOTE: Refer to the INTAKE AIR SYSTEM (SUPPLEMENT) (GX) article for additional information for the GX model.

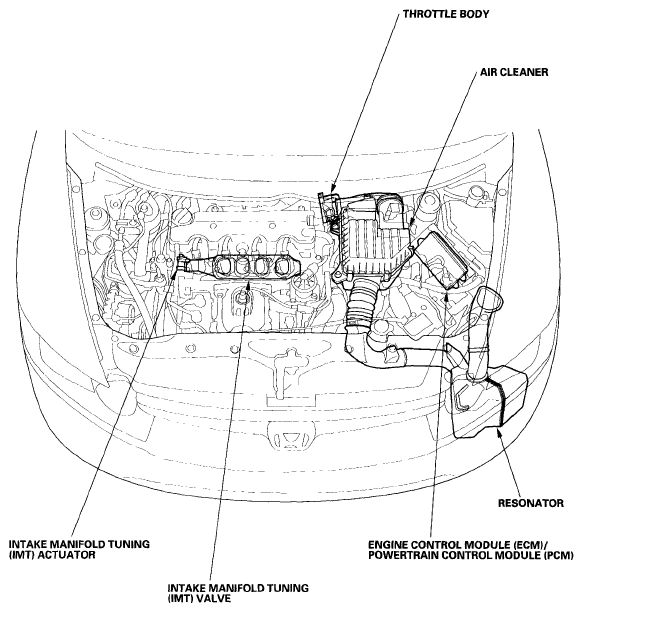

Fig 1: Locating Intake Air System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
