A/T Gear Position Indicator
›
Circuit Diagram
Circuit Diagram

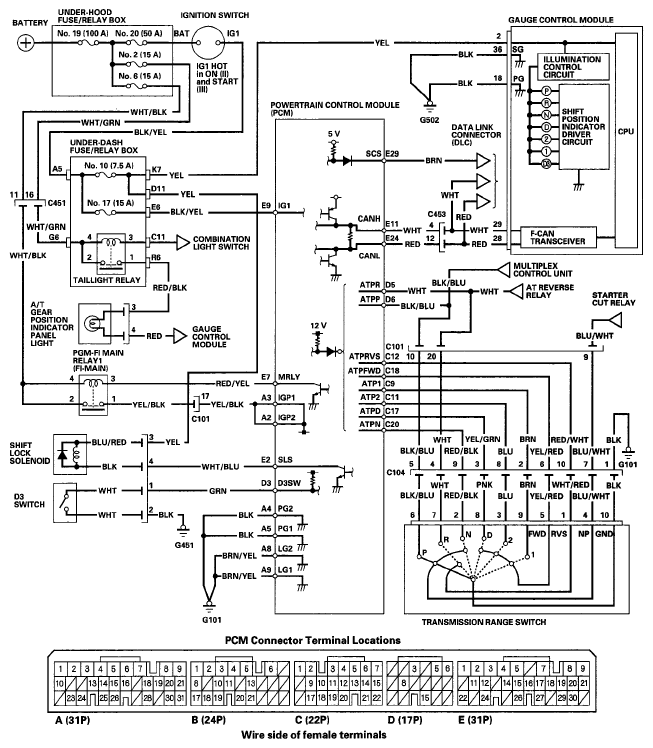

Fig 1: A/T Gear Position Indicator Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
