Right Back-up Light Connector End View
Right Back-up Light Connector End View

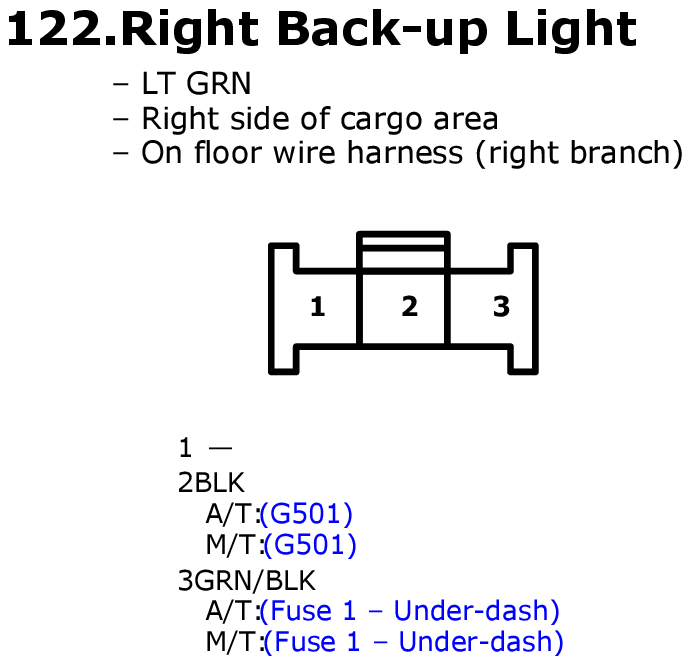

Fig 1: Right Back-up Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
