Wiper Switch: Installation
WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL WIPER SWITCH

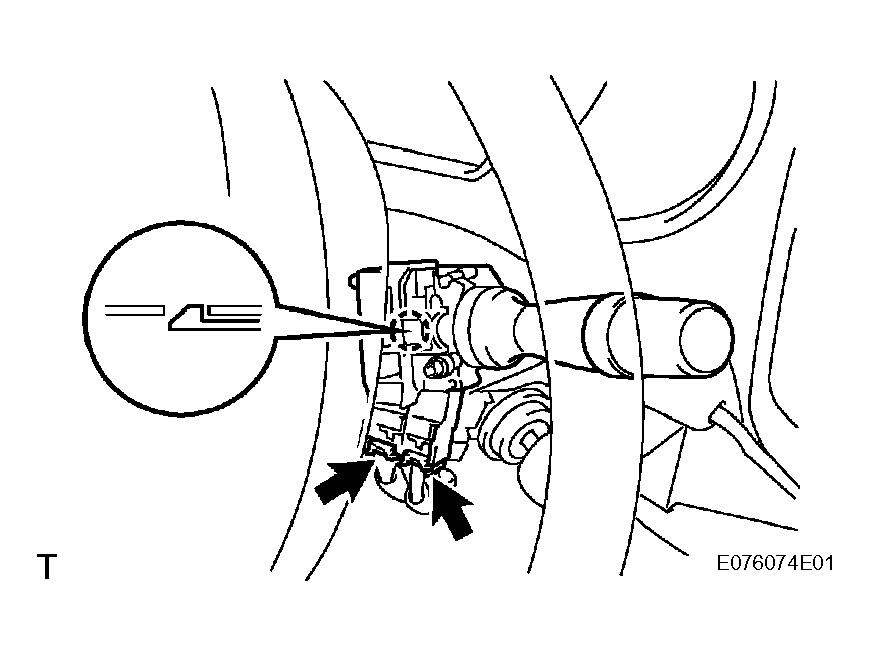

- Engage the claw and install the windshield wiper switch assembly.
- Connect the 2 connectors.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
- INSTALL STEERING COLUMN UPPER COVER (See INSTALLATION )
- INSTALL STEERING COLUMN LOWER COVER (See INSTALLATION )
