DTC U0107 (30): Lost Communication With Throttle Actuator Control Module (A/T)
›
Notes
DTC U0107 (30): Lost Communication With Throttle Actuator Control Module (A/T): Notes

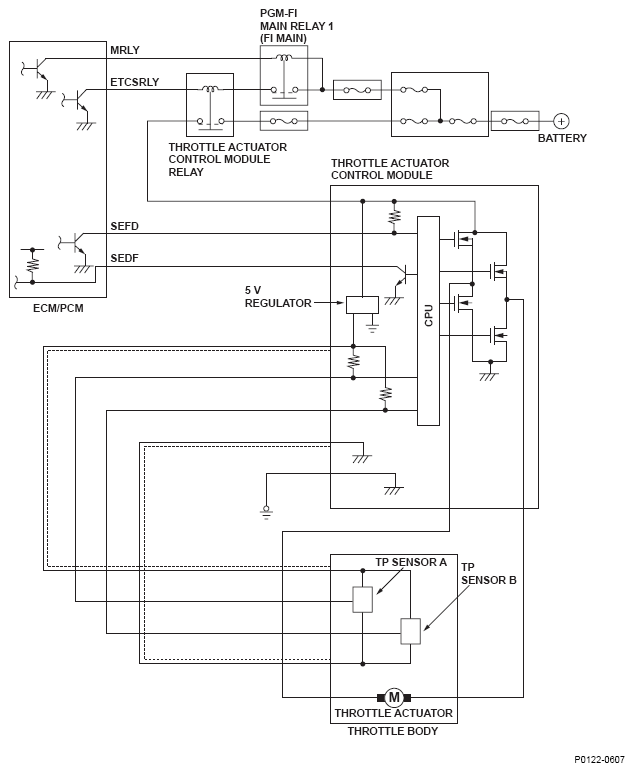

Fig 1: Lost Communication With Throttle Actuator Control Module Circuit Diagram
