Position detection Image with GPS satellite: Notes

WARNING: This page is about a different car, the 2009 Acura MDX, 2008 Acura MDX, and 2007 Acura MDX. However, it is still accessible from the selected car via links, so may be relevant.

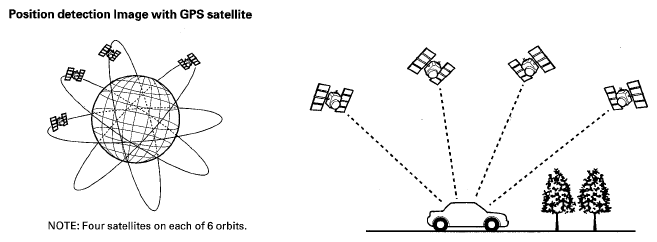

Fig 1: Position Detection Image With GPS Satellite
G05488599Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Four satellites on each of 6 orbits.
