Alternator Overhaul
›
Exploded View
Exploded View

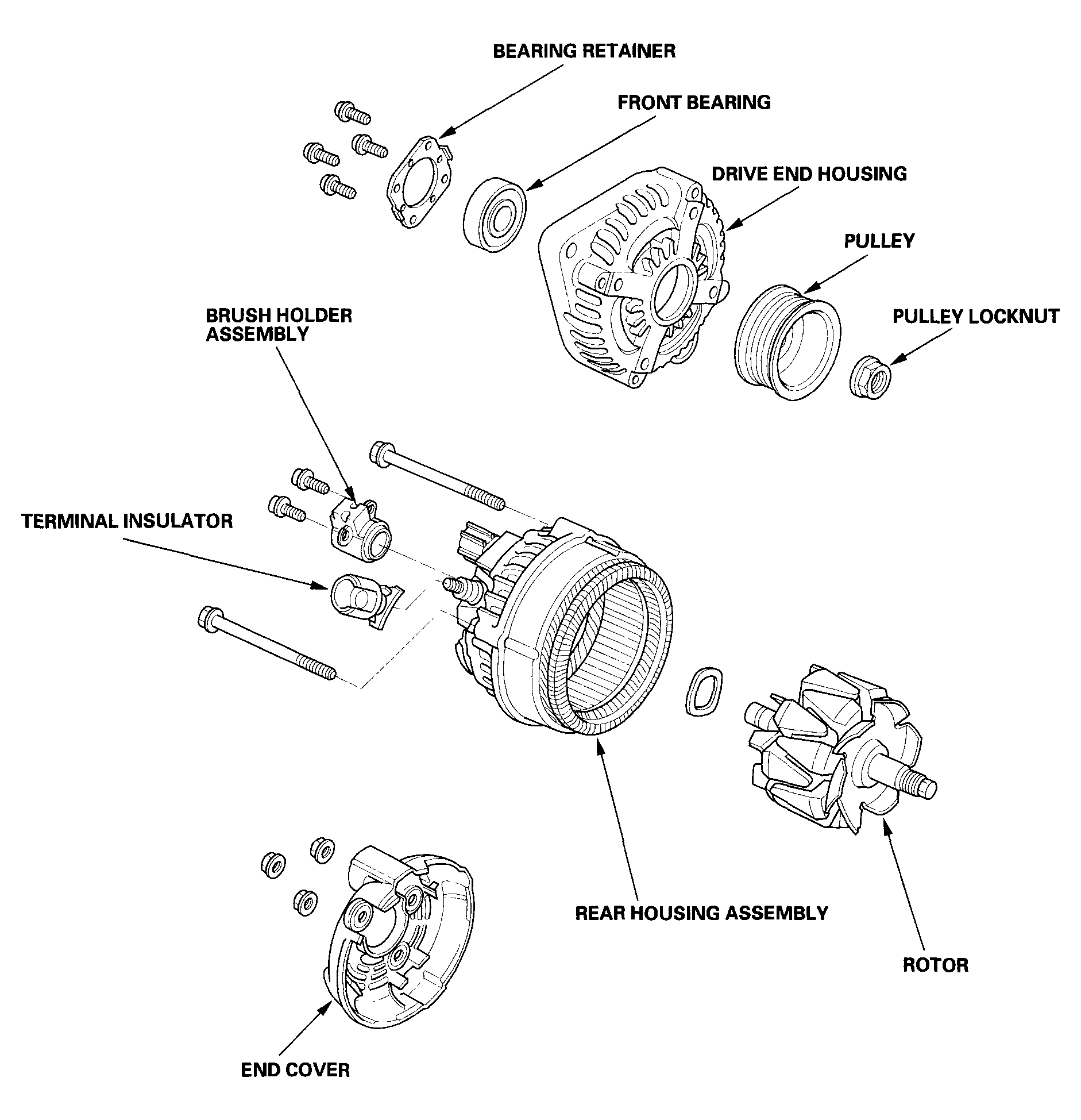

Fig 1: Exploded View Of Alternator Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
