System Description
›
Electronic Control System
›
ECM Electrical Connections
ECM Electrical Connections

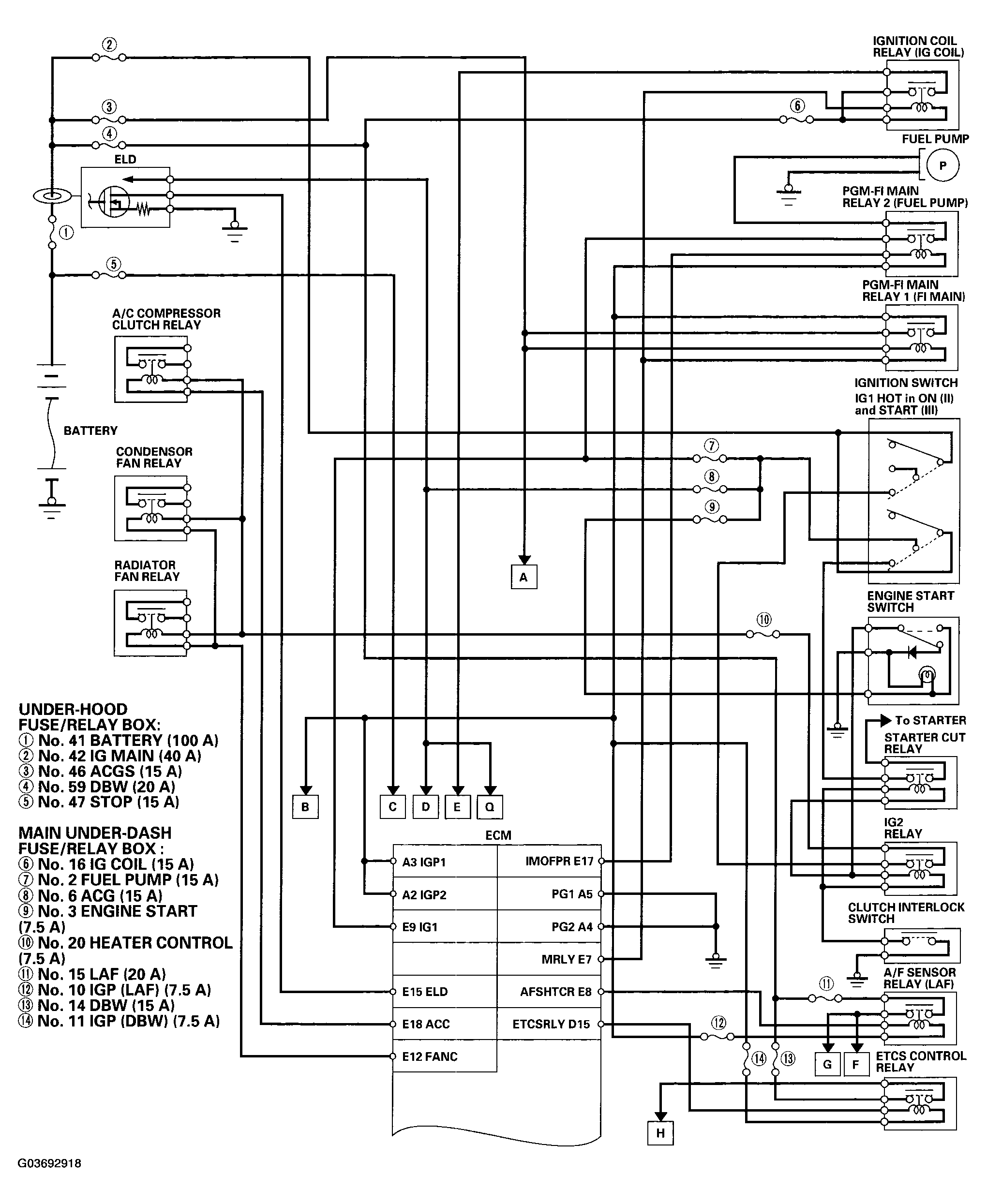

Fig 1: ECM Electrical Connections Diagram (1 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

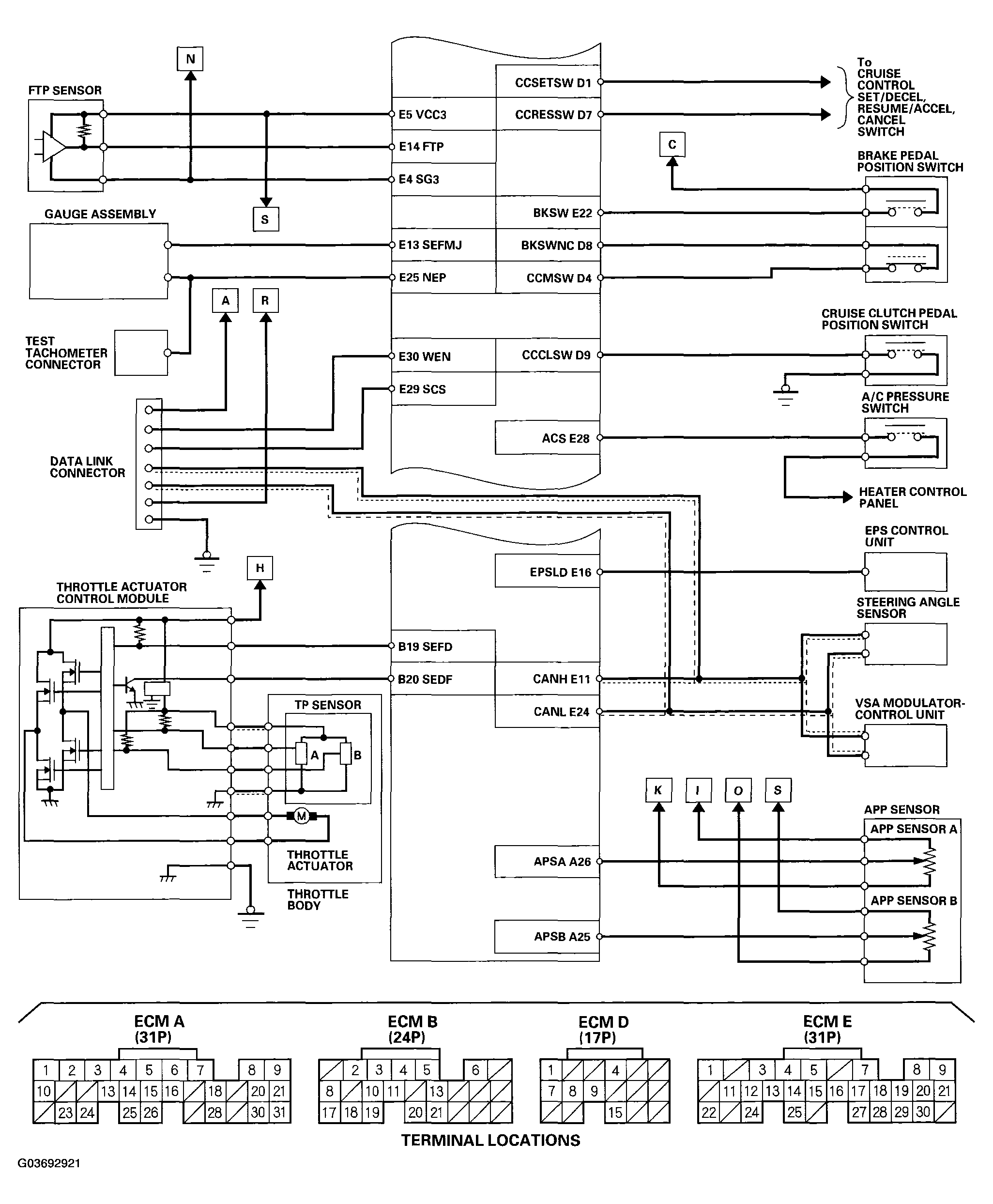

Fig 2: ECM Electrical Connections Diagram (2 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

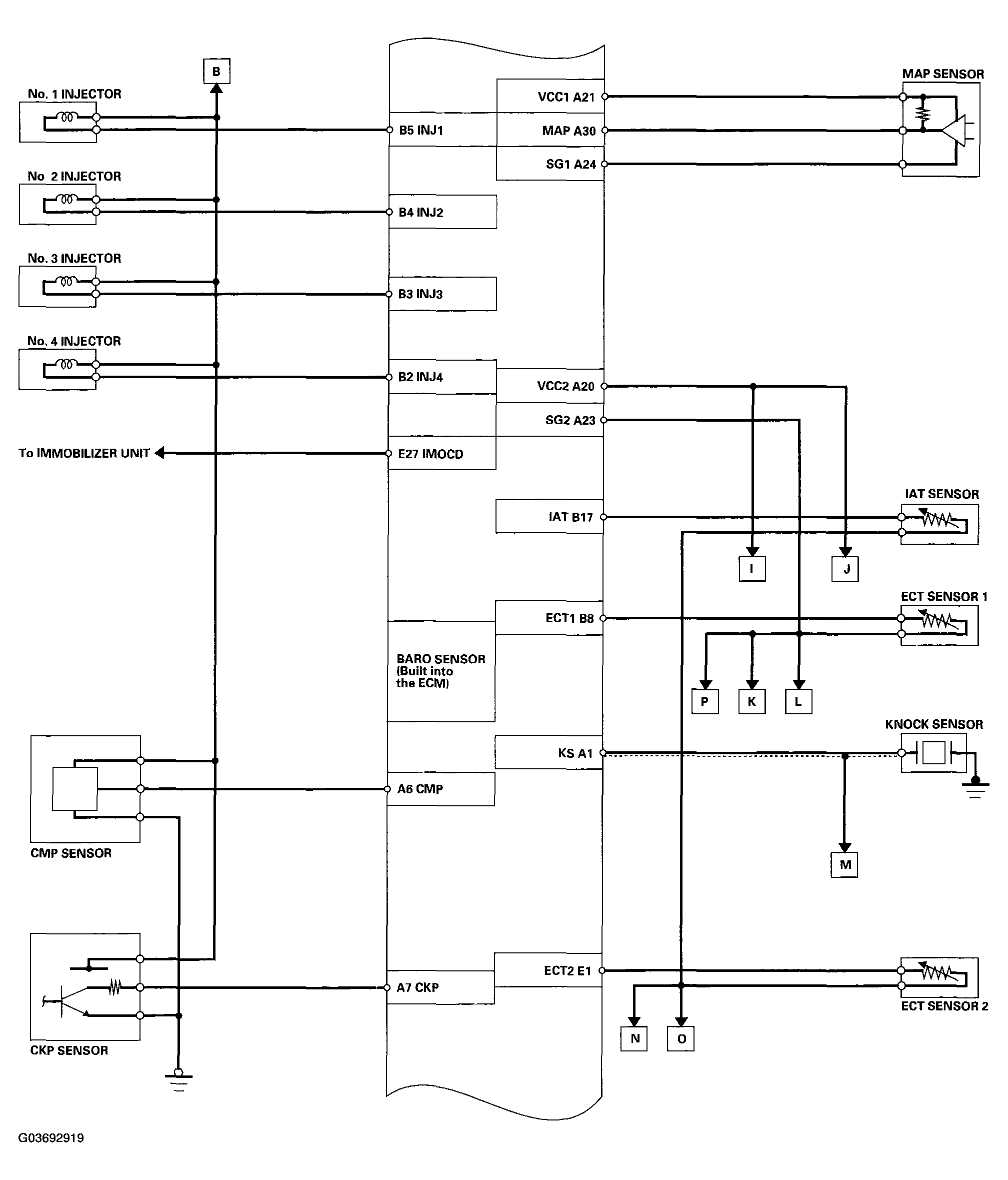

Fig 3: ECM Electrical Connections Diagram (3 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

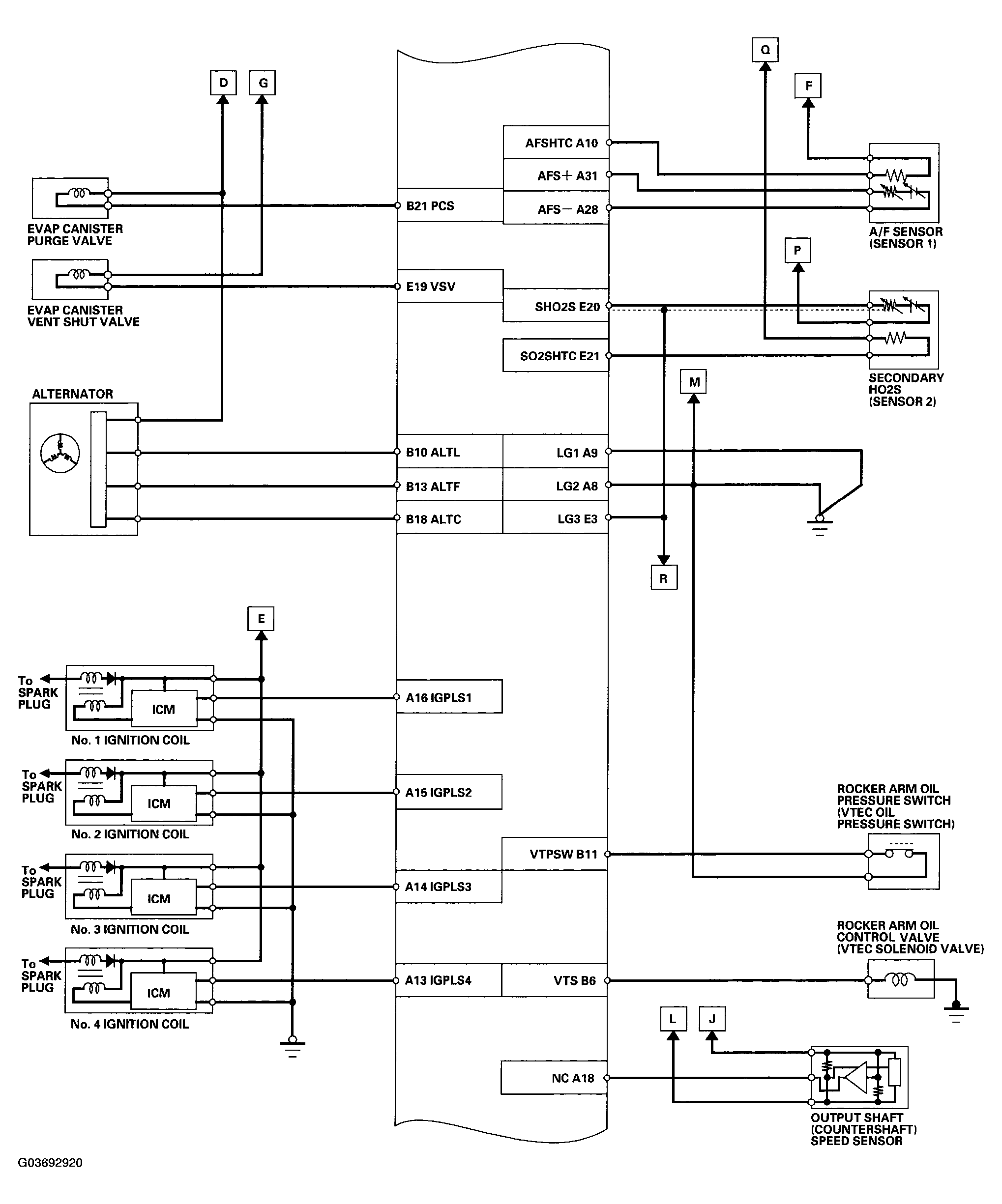

Fig 4: ECM Electrical Connections Diagram (4 Of 4)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
