Component Location Index

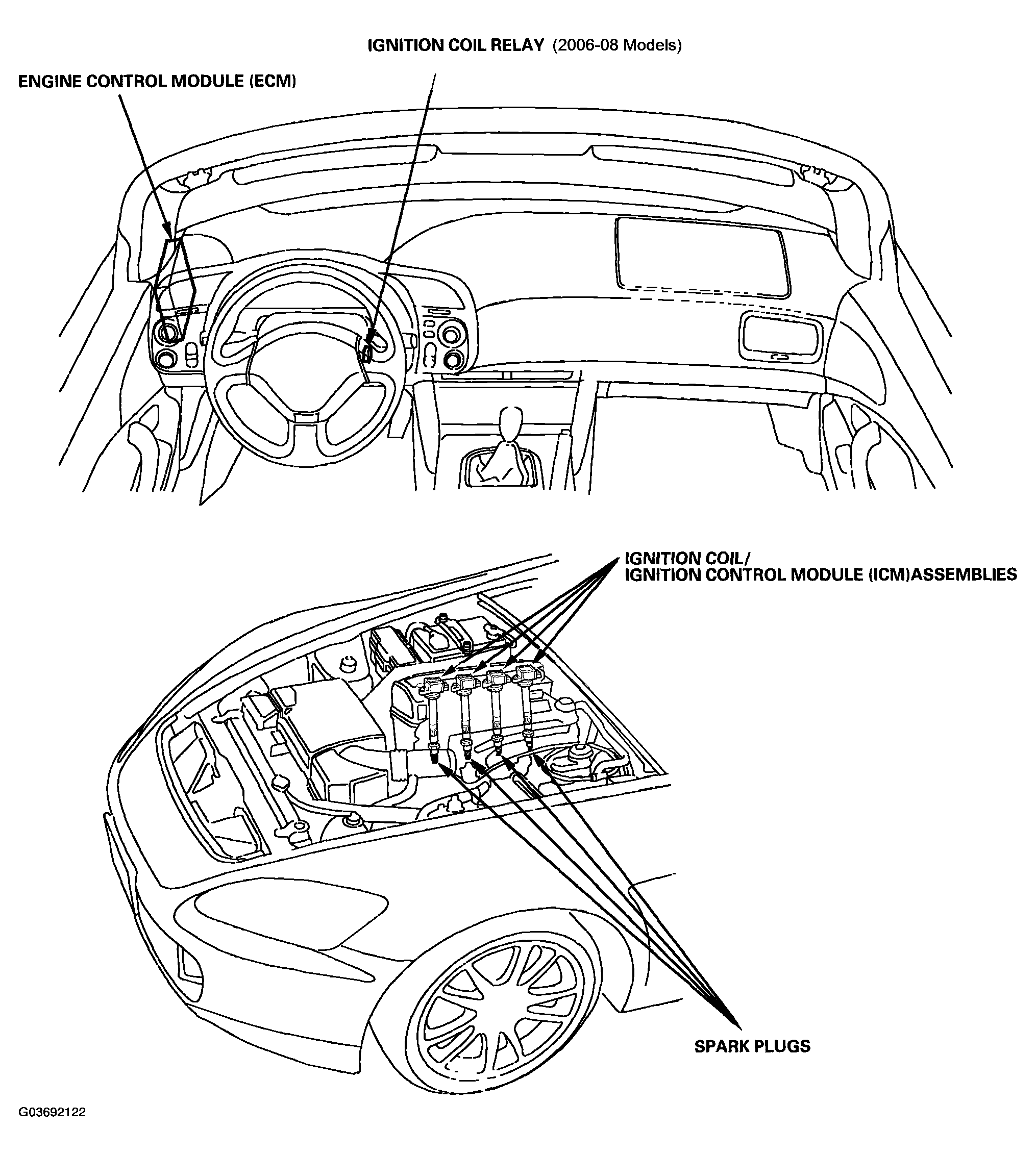

Fig 1: Identifying Ignition System Replacement Components
G03692122Courtesy of AMERICAN HONDA MOTOR CO., INC.
