Power Windows: Notes

NOTE: For connector or component location "PHOTO", see OEM-COMPONENT LOCATION . For connector "VIEW", see OEM CONNECTOR END VIEWS .

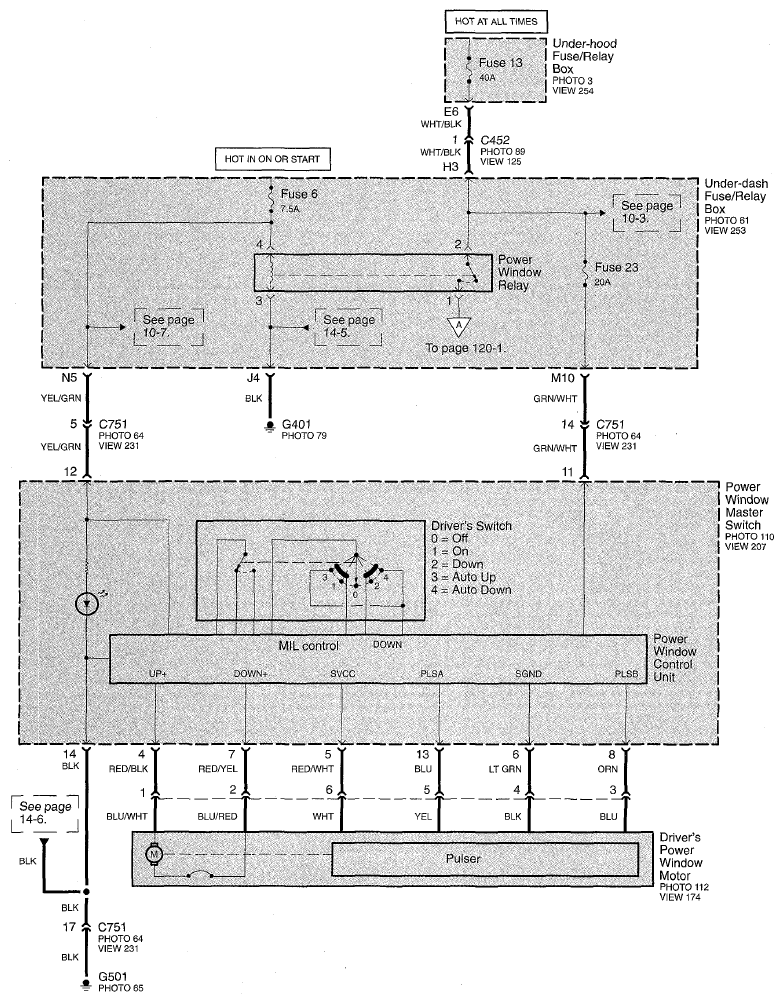

Fig 1: Power Windows Circuit Diagram (Page 120)
G07758396

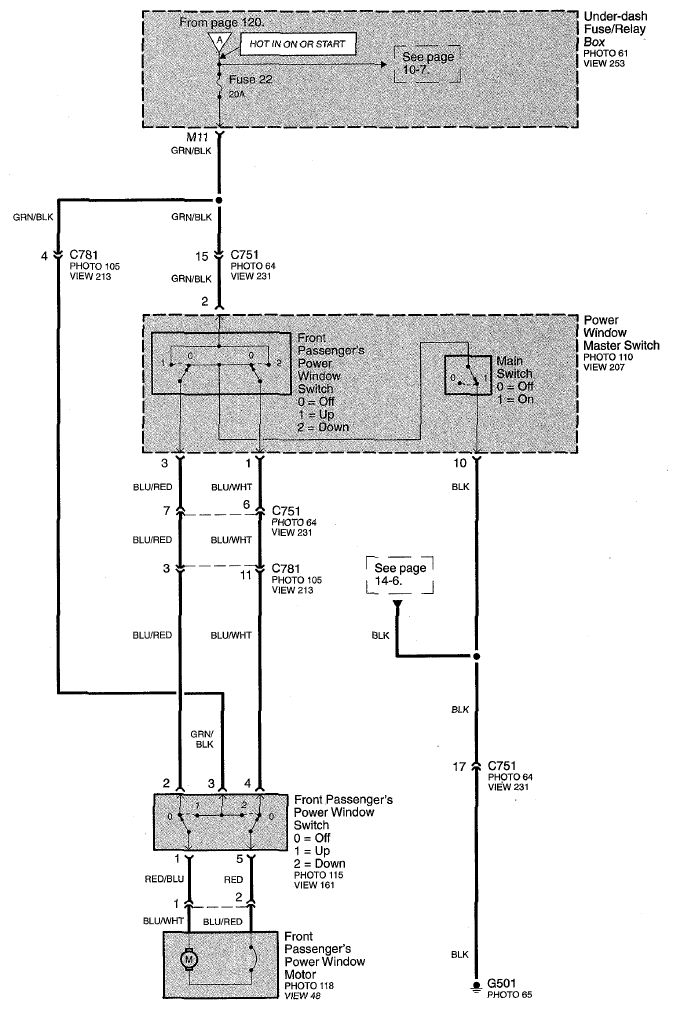

Fig 2: Power Windows Circuit Diagram (Page 120-1)
G07758397
