Power, Grounds and Diagnostics

Fig 1: Power, Grounds And Diagnostics Circuit Diagram (Page 50)

Fig 2: Power, Grounds And Diagnostics Circuit Diagram (Page 50-1)

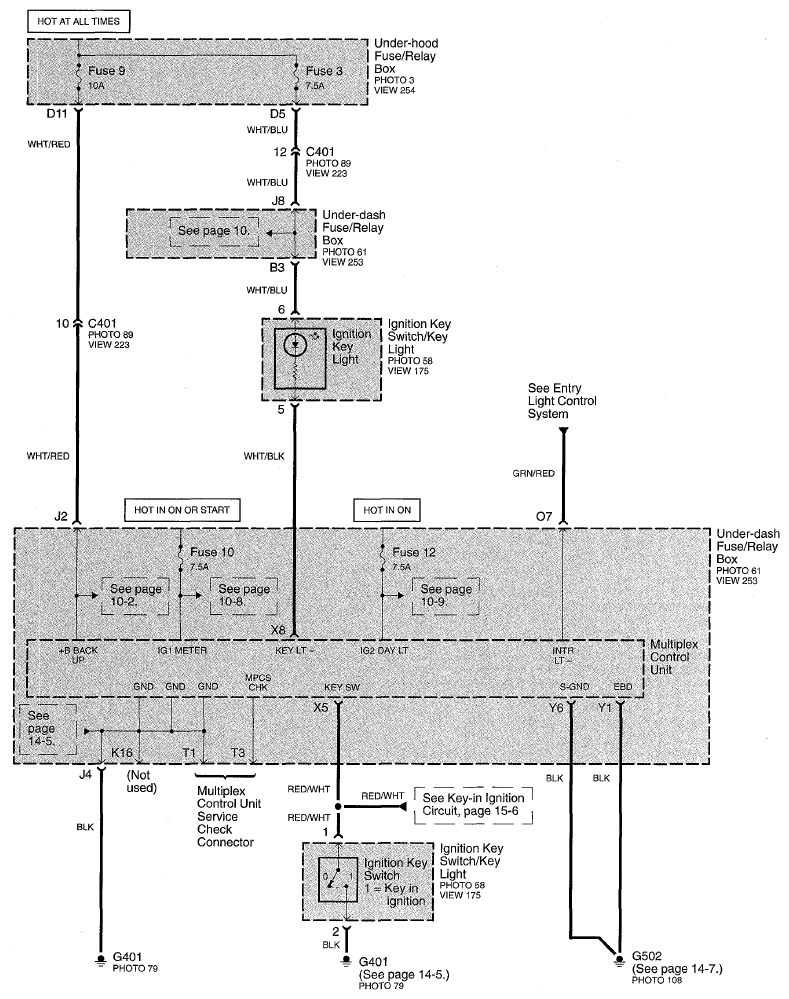

Fig 3: Power, Grounds And Diagnostics Circuit Diagram (Page 50-2)
