Rear Engine Mount Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

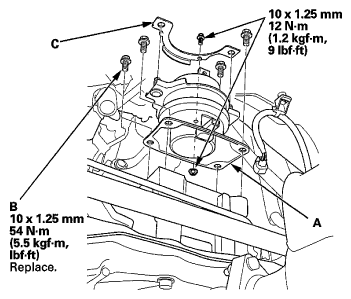

Install the rear engine mount (A) using new bolts (B) and install the rear engine mount bracket (C).

Fig 1: Rear Engine Mount Bracket And Rear Engine Mount Bolts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the transmission jack.

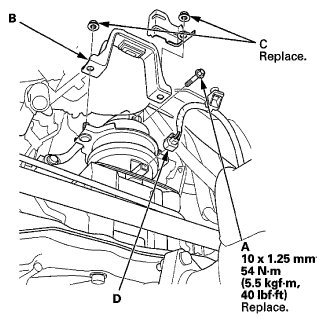

Install the new rear engine mount mounting bolt (A), then loosely install the rear engine mount stop (B) using new nuts (C), then connect the rear engine mount actuator connector (D).

Fig 2: Rear Engine Mount Stop, Rear Engine Mount Actuator Connector And Rear Engine Mount Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Lower the vehicle on the lift.
Tighten the rear mount stop nuts.

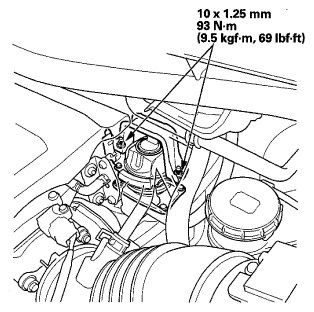

Fig 3: Rear Mount Stop Nuts With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
