Suspension Stroke Sensor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle, make sure it is securely supported.
Disconnect the 3P connector (A) from the suspension stroke sensor (B).
Front

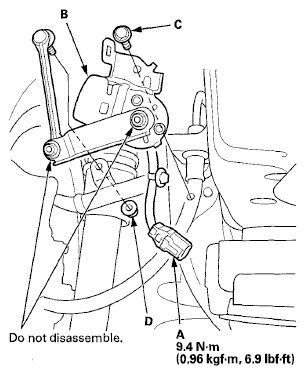

Fig 1: Front Suspension Stroke Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

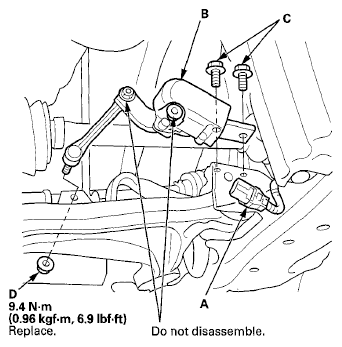

Fig 2: Rear Suspension Stroke Sensor With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt (C) and nut (D), then remove the suspension stroke sensor.
Install the sensor in the reverse order of removal.
After installing, do the headlight initial position learning (see HEADLIGHT INITIAL POSITION LEARNING PROCEDURE ).
