Rear Individual Map Light Test/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the roof outlet (see step 7 on HEADLINER REMOVAL/INSTALLATION ).
  2. Remove the two mounting screws (A), then remove the rear individual map light (B).

    Rear Individual Map Light: 5 W

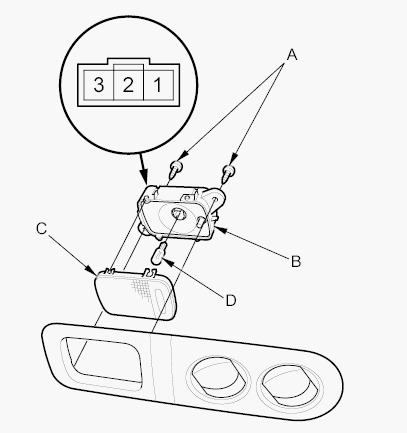

    Fig 1: Identifying Rear Individual Map Light Mounting Screws
    G00523699Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Seperate the lense (C) from the map light.
  4. Check for continuity between the terminals in each switch position according to the table.
    Fig 2: Identifying Rear Map Light Switch Continuity Chart
    G00523698Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. If the continuity is not as specified, check the bulb. If the bulb is OK, replace the light.
  6. Install the light in the reverse order of removal.
