Front Seat Slide Motor Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

SRS Components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to tear or damage the seat covers.
  • The driver's seat is shown; the passenger's seat is similar.
  1. Remove the front seat (see FRONT SEAT REMOVAL/INSTALLATION  ).
  2. Remove the flex cable (A) and the cable housing (B).
    1. Release the housing from the hooks (C).
    2. Disconnect the cable from the worm gear (D) in the inner seat track by pulling out the housing.
    3. Disconnect the cable from the slide motor (E).
      NOTE: Take care not to kink the cable.

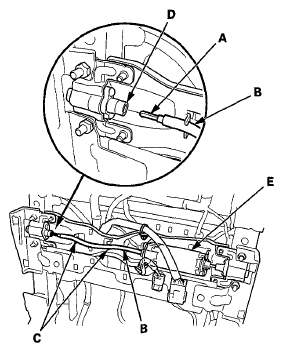

      Fig 1: Removing Flex Cable And Cable Housing
      G06967841Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the slide motor connector (A), and remove the screws, then remove the slide motor (B) from the slide motor bracket (C) while disconnecting the motor from the short flex cable (D).
    Fig 2: Identifying Slide Motor Bracket, Slide Motor Connector And Screws
    G06967842Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Pull out the short flex cable (A) from the worm gear (B) in the outer seat track.
    Fig 3: Identifying Multipurpose Grease Applying Areas To Worm Gear In Both Seat Tracks
    G06967843Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the slide motor in the reverse order of removal, and note these items:
    • Apply multipurpose grease to the worm gear areas in both seat tracks.
    • Install the short flex cable to the slide motor before installing the slide motor to the slide motor bracket.
    • Make sure both seat tracks are all the way forward before installing the slide motor bracket on the tracks. Install the short flex cable to the slide motor.
    • Make sure the short flex cable and the flex cable are connected properly.
    • Make sure the motor connector is plugged in properly.
    • Check the front seat slide operation.
