Third Row Seat Disassembly/Reassembly

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:
  • Put on gloves to protect your hands.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.
  1. Remove the third row seat (see THIRD ROW SEAT REMOVAL/INSTALLATION  ).
  2. Remove the third row seat-back cover (see THIRD ROW SEAT-BACK COVER REPLACEMENT  ).
  3. Remove the third row seat cushion cover (see THIRD ROW SEAT CUSHION COVER REPLACEMENT  ).
  4. Remove the third row seat-back recline cables (see THIRD ROW SEAT-BACK RECLINE CABLE REPLACEMENT  ).
  5. Remove the screws, then remove the upper bracket cover (A) and the center bracket cover (B).

    Left third row seat

    Fig 1: Identifying Upper Bracket Cover And Center Bracket Cover Screws (Left Third Row Seat)
    G06967949Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Right third row seat

    Fig 2: Identifying Upper Bracket Cover And Center Bracket Cover Screws (Right Third Row Seat)
    G06967950Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Left third row seat: Remove the recline inner cover (A) and the center inner cover (B) from the seat frame (C).

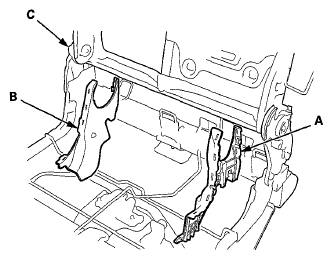

    Fig 3: Identifying Recline Inner Cover And Center Inner Cover
    G06967951Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the bolts (A, B) and the pivot bushing (C) (right third row seat), then separate the seat-back frame (D) and the seat cushion frame (E).

    Left third row seat

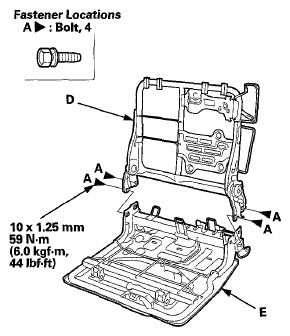

    Fig 4: Seat-Back Frame And Seat Cushion Frame Bolts (Left Third Row Seat) With Torque Specifications
    G06967952Courtesy of AMERICAN HONDA MOTOR CO., INC.

    Right third row seat

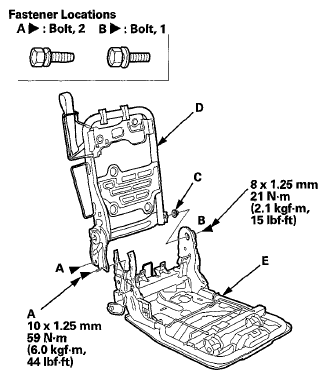

    Fig 5: Seat-Back Frame And Seat Cushion Frame Bolts (Right Third Row Seat) With Torque Specifications
    G06967953Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Right third row seat: Remove the recline inner cover (A) and the center inner cover (B) from the seat frame (C).

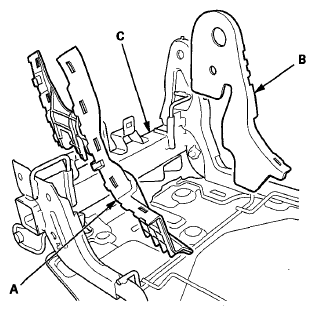

    Fig 6: Identifying Recline Inner Cover And Center Inner Cover
    G06967954Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Reassemble the third row seats in the reverse order of disassembly.
