Third Row Seat Latch Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Honda Tool and Equipment Program; call 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to tear or damage the seat covers.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Stand the third row seat upright, and hold it.
Remove the foot cover (see step 5 ).
While holding the seat upright, remove the bolts securing the latch (A), and disconnect the cable (B) by releasing the push nut (C), then remove the latch.
NOTE: Replace the push nut you removed with a new one.

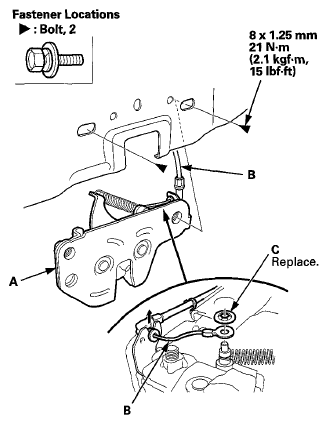

Fig 1: Disconnecting Cable By Releasing Push Nut With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the latch (A) in the reverse order of removal, and move it left or right until it is centered on the striker.

Fig 2: Latch With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
