Circuit Diagram

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

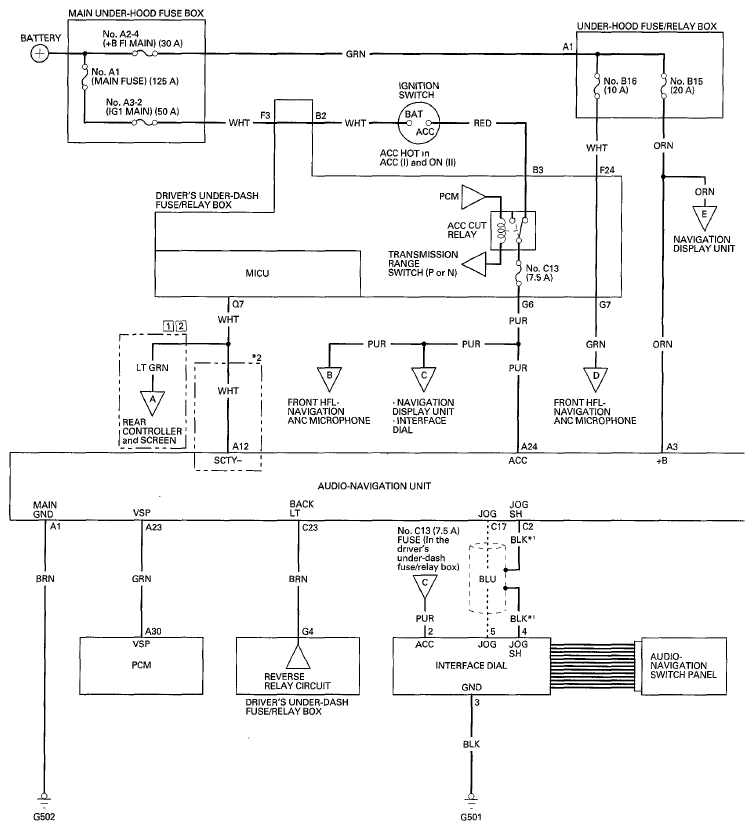

Fig 1: Audio-Navigation Unit Circuit Diagram (1 Of 5)

G06971106

Courtesy of AMERICAN HONDA MOTOR CO., INC.

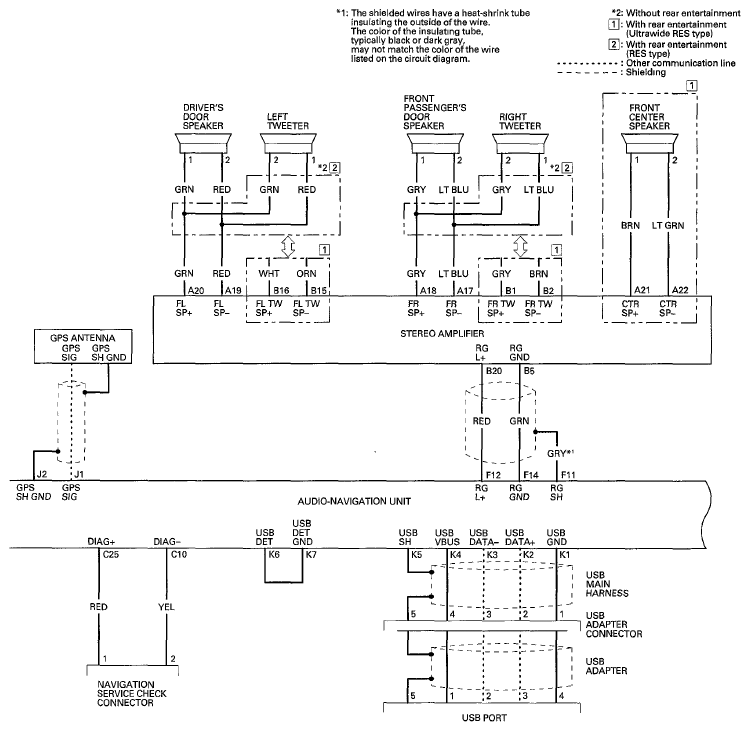

Fig 2: Audio-Navigation Unit Circuit Diagram (2 Of 5)

G06971107

Courtesy of AMERICAN HONDA MOTOR CO., INC.

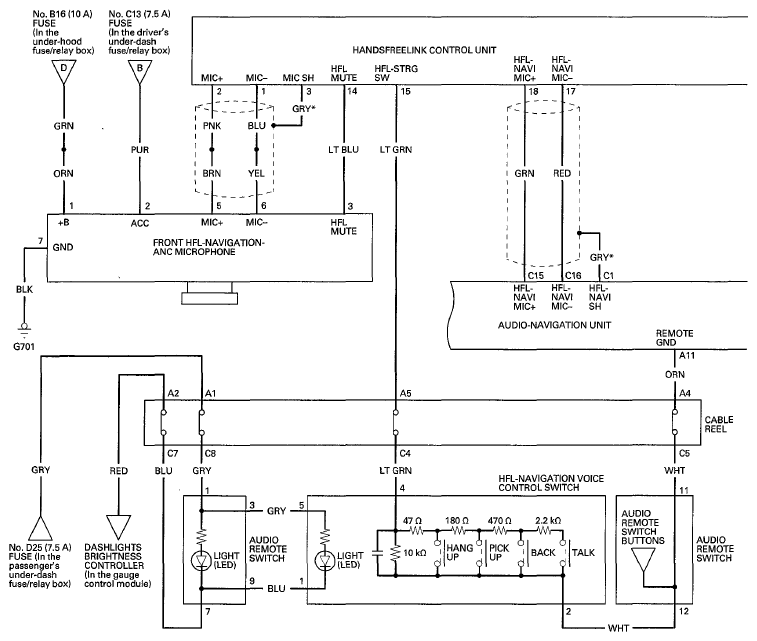

Fig 3: Audio-Navigation Unit Circuit Diagram (3 Of 5)

G06971108

Courtesy of AMERICAN HONDA MOTOR CO., INC.

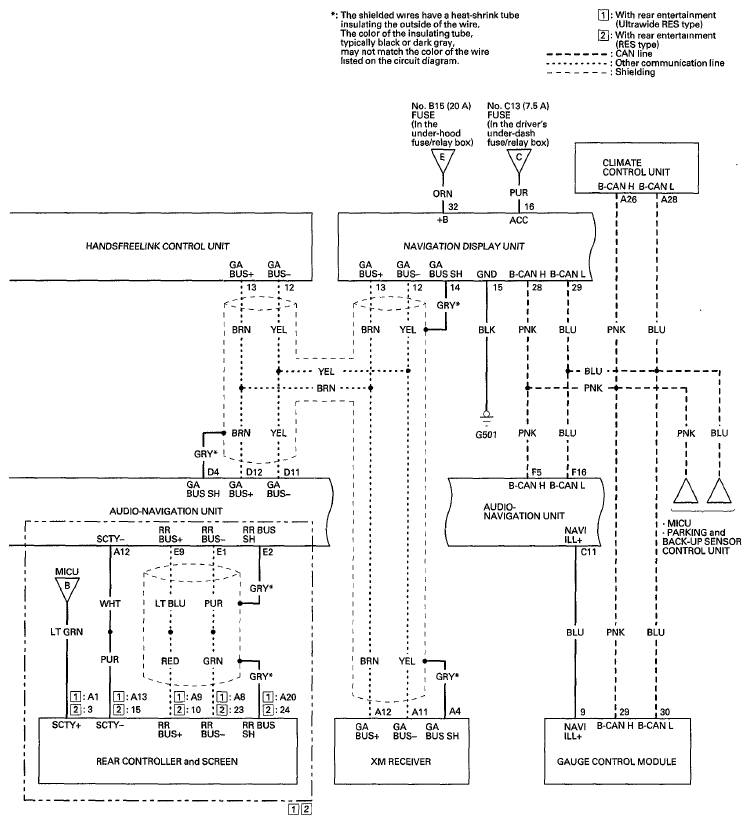

Fig 4: Audio-Navigation Unit Circuit Diagram (4 Of 5)

G06971109

Courtesy of AMERICAN HONDA MOTOR CO., INC.

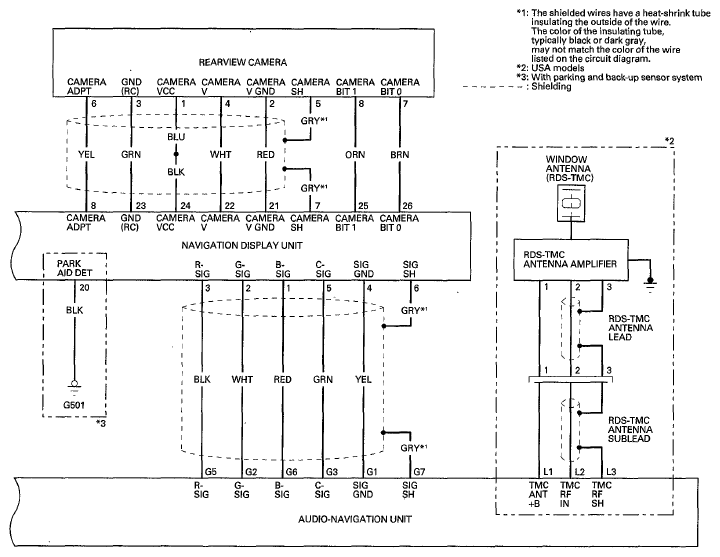

Fig 5: Audio-Navigation Unit Circuit Diagram (5 Of 5)

G06971110

Courtesy of AMERICAN HONDA MOTOR CO., INC.
