Sliding Door Pinch Sensor Test/Replacement

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door panel (see SLIDING DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 2P connector (A) from the pinch sensor (B).

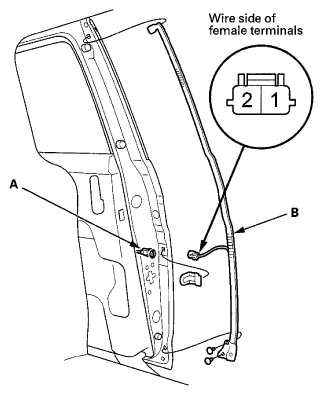

    Fig 1: Identifying 2P Connector And Pinch Sensor
    G06970293Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure the resistance between the pinch sensor 2P connector terminals No. 1 and No. 2. The resistance should vary from about 1 kΩ to about 100 Ω when the sensor is pressed.
  4. If the resistance is not as specified, remove the front lower sash, front latch and clip, then replace the pinch sensor.
  5. Install in the reverse order of removal. After installing, make sure the sliding door operates properly.
    NOTE:
    • Check the connection with the connector.
    • Check the operation of the sliding door after installing the sliding door pinch sensor.
