Blower Unit Removal/Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Honda Odyssey, 2016 Honda Odyssey, 2015 Honda Odyssey, 2014 Honda Odyssey, and 2013 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ) and passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Remove the glove box damper (see GLOVE BOX LOCK CYLINDER REPLACEMENT ).
  3. Remove the passenger's middle panel (see PASSENGER'S MIDDLE PANEL REMOVAL/INSTALLATION ).
  4. With navigation: Remove the stereo amplifier (see AUDIO DISPLAY UNIT REMOVAL/INSTALLATION ).
  5. Remove the engine mount control unit (see ENGINE MOUNT CONTROL UNIT REPLACEMENT ).
  6. With cool box: Remove the cool box inlet hose (A).
    Fig 1: Identifying Cool Box Inlet Hose
    G06968212Courtesy of AMERICAN HONDA MOTOR CO., INC.

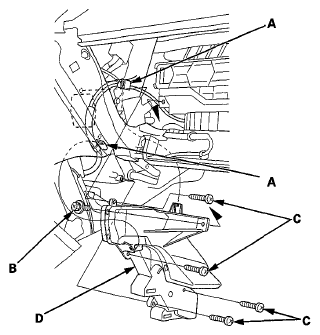

  7. Detach the wire harness clips (A), then remove the self-tapping screw (B), the self-tapping screws (C), and the passenger's heater duct and cover (D).
    Fig 2: Identifying Wire Harness Clips, Self-Tapping Screws And Passenger'S Heater Duct And Cover
    G06968213Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. With USB adapter: Detach the harness clips (A).
    Fig 3: Identifying Harness Clips And Self-Tapping Screws
    G06968214Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Remove the self-tapping screws (B).

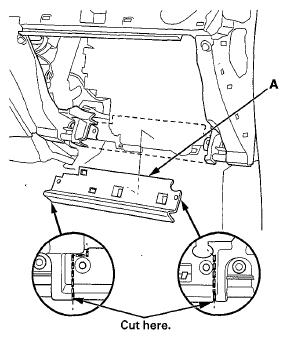

  10. Cut the plastic cross brace (A) in the glove box opening with diagonal cutters in the area shown. Retain the plastic cross brace to be reinstalled later.
    Fig 4: Identifying Plastic Cross Brace Cutting Lines
    G06968215Courtesy of AMERICAN HONDA MOTOR CO., INC.

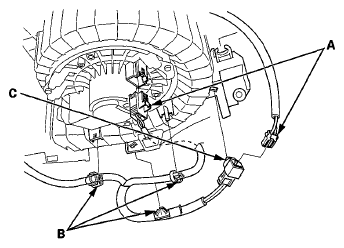

  11. Disconnect the connectors (A) from the front blower motor. Detach the wire harness clips (B) and the connector clip (C).
    Fig 5: Identifying Front Blower Motor Connectors, Wire Harness Clips And Connector Clip
    G06968216Courtesy of AMERICAN HONDA MOTOR CO., INC.

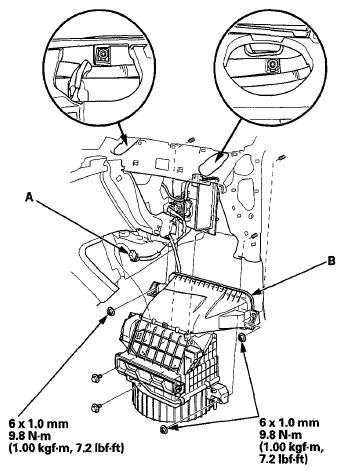

  12. Disconnect the connector (A) from the recirculation control motor. Remove the self-tapping screws, the mounting nuts, and the blower unit (B).
    Fig 6: Recirculation Control Motor Connector And Blower Unit With Mounting Bolts Torque Specification
    G06968217Courtesy of AMERICAN HONDA MOTOR CO., INC.
  13. Install the unit in the reverse order of removal. Make sure that there is no air leakage.
