Body & Design Specifications
›
Design Specifications
›
Body Specifications
›
'07-08 Models - LX, EX
'07-08 Models - LX, EX

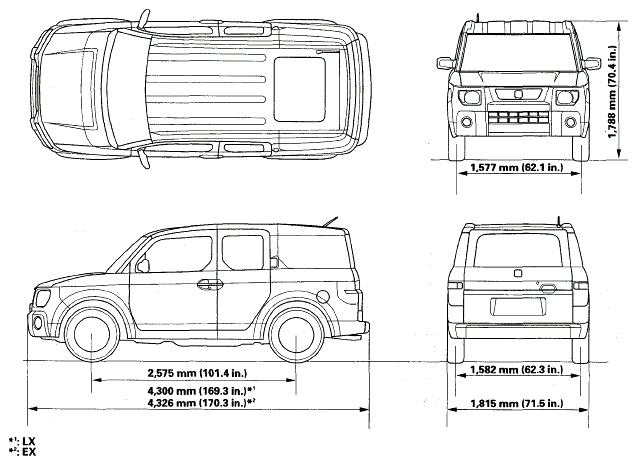

Fig 1: Identifying Body Specifications (LX, EX)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
