Gauge Control Module (View 239)
Gauge Control Module (View 239)
GRY
Behind gauge control module
On dashboard wire harness A (left branch)

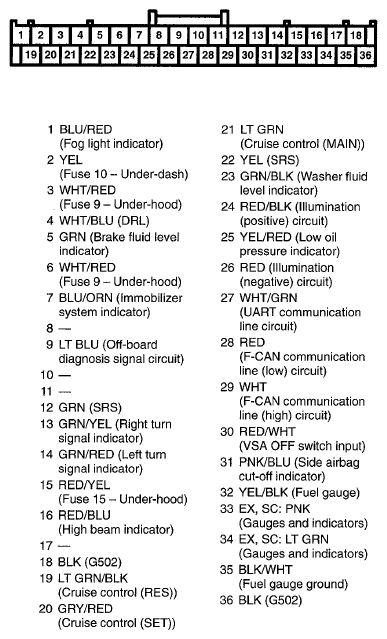

Fig 1: Gauge Control Module Connector Terminal (View 239)
