Element SC, Automatic
›
Repair and Diagnosis
›
Quick Lookups
›
Wiring Diagrams
›
OEM Connector End Views
›
Connector End Views
›
Heater Control Panel (View 238)
Heater Control Panel (View 238)
GRN
Behind heater control panel
On dashboard wire harness A (left branch)

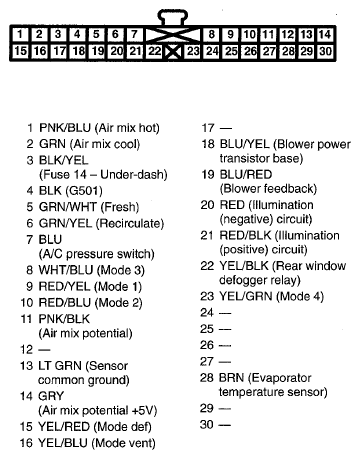

Fig 1: Heater Control Panel Connector Terminal (View 238)
