Circuit Diagram
Circuit Diagram

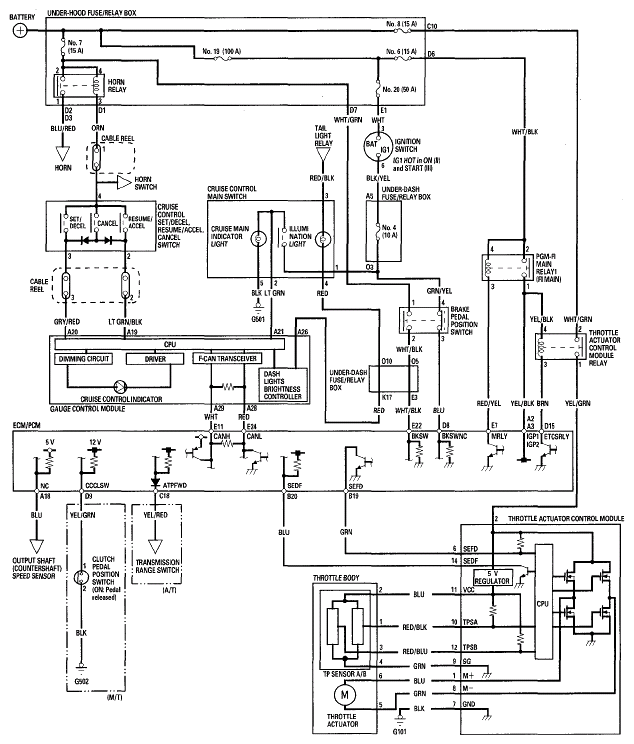

Fig 1: Identifying Cruise Control Circuit Diagram ('07-11 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
